15 February 2006
PCBS AND HDD
3-121
Replacement
Adjustm
ent
3.12.3 IP
U
BOA
RD
B064 Series: IPU Board
Rear upper cov
er (
☛
3.3.5)
Swing
-out the PCB unit (
☛
3.12.2)

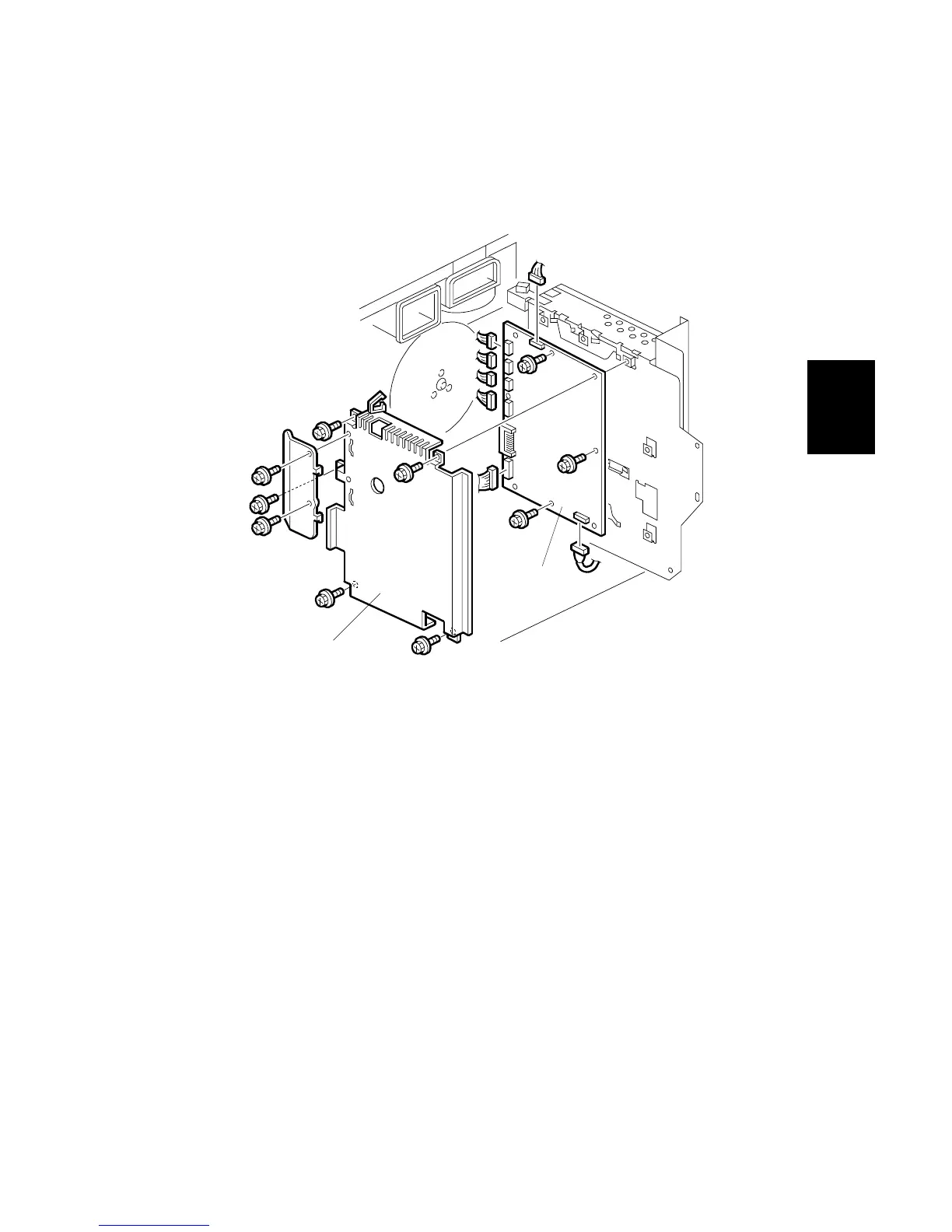

[A]:
PCB unit cover (
x 7
)
[B]:
IPU board (
x 3,
x 7)
B246R1025.WMF
[A]
[B]
349
351
