Ricoh MT-C1 - Paper Registration Drive

15 February 2006 PAPER FEED
6-111
Detailed
Descriptions
Paper Registration Drive

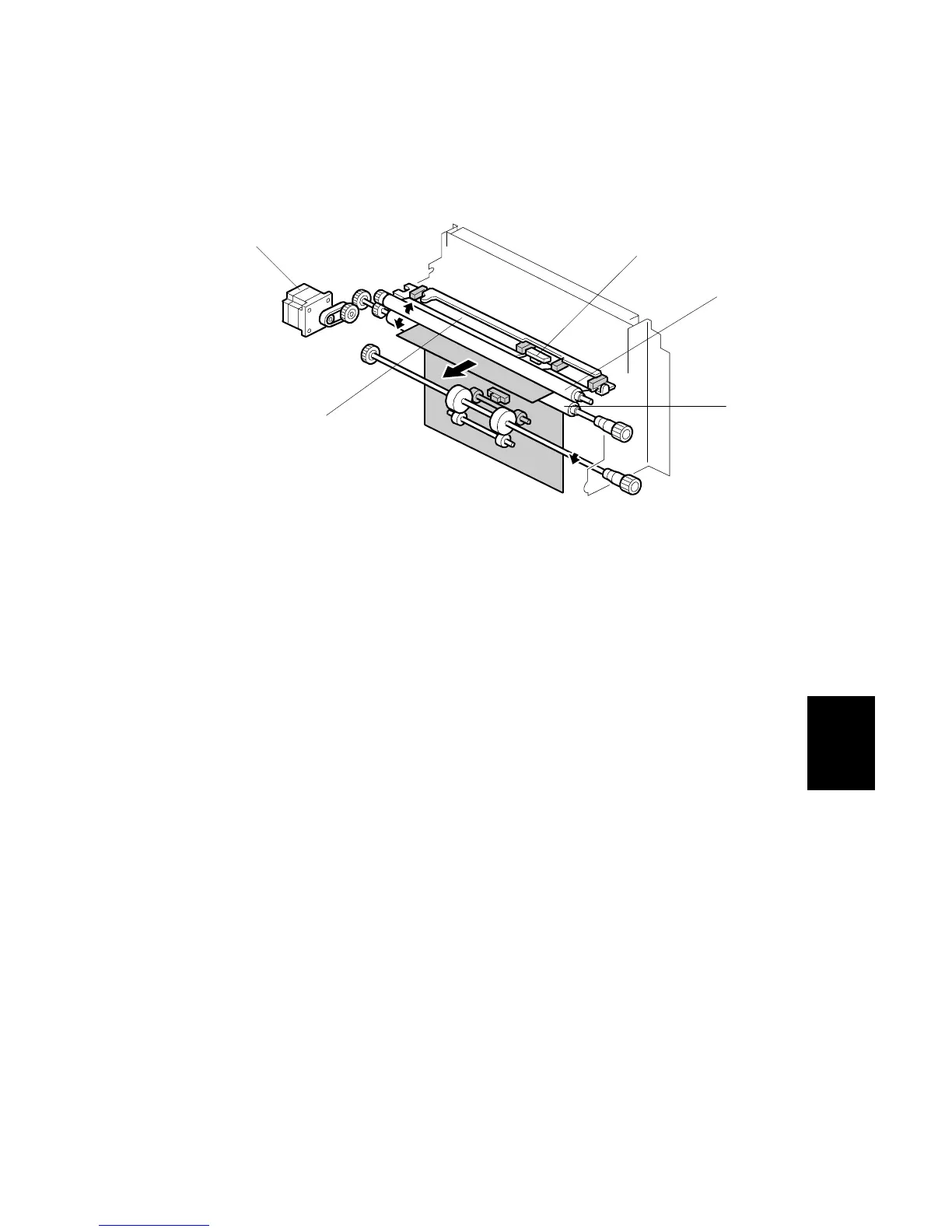

When the registration sensor [A] detects the leading edge of the paper, the
registration motor [B] stops the paper at the registration rollers [C, D] for a short
while to correct the skew in the paper.
Mylar [E] touches the upper surface of roller [C]. This mylar removes dust from the
paper while it passes the registration rollers.
NOTE: Use SP1003 (Registration Buckle Adjustment) to adjust the registration
motor timing for each paper feed station or the duplex tray. For details see
“5. Service Tables”.
B246D977.WMFF
[A]
[B]
[C]
[D]
[E]
