PAPER FEED 15 February 2006
3-96

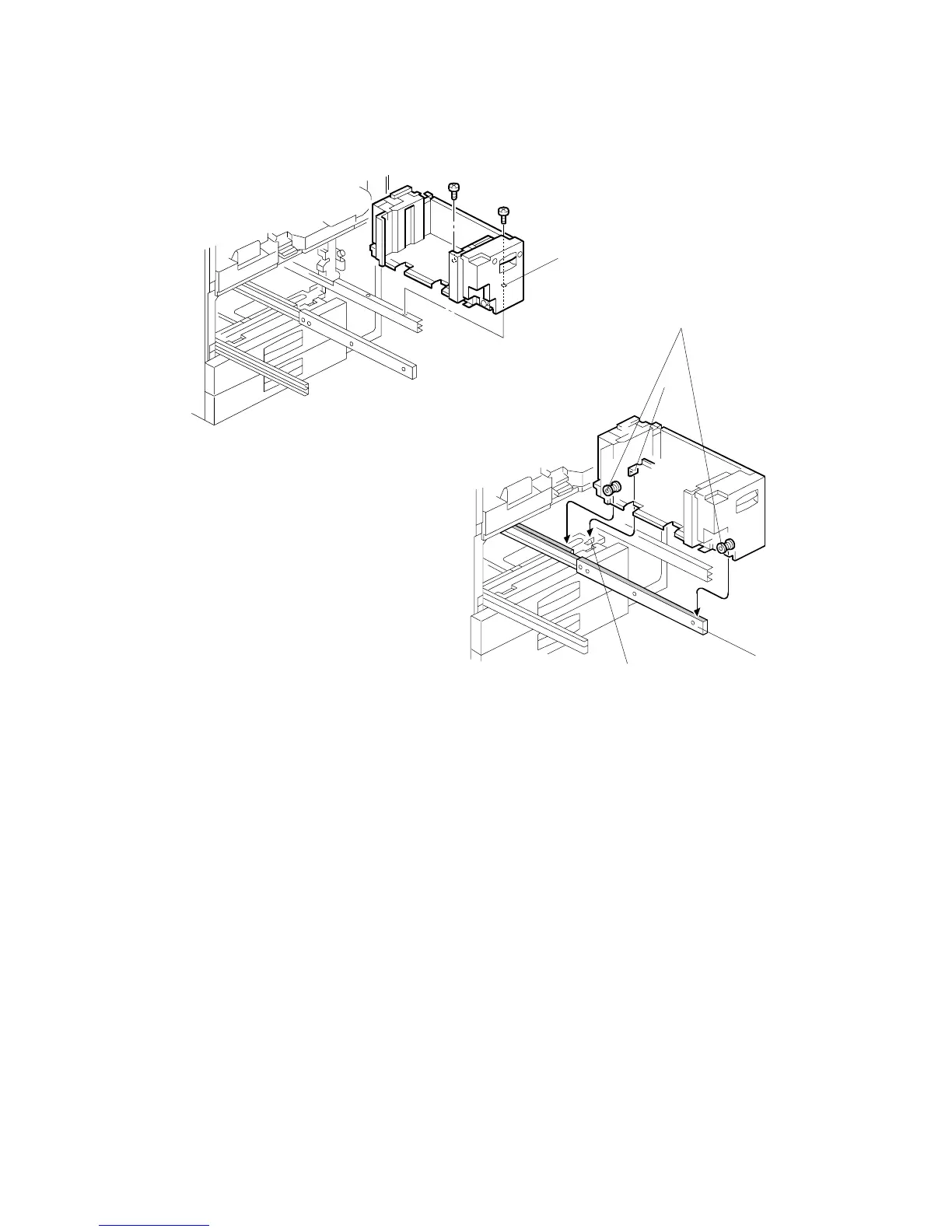

[A]: Right tandem tray ( x 2).
NOTE: 1) When re-installing the right tandem tray, make sure that the wheels [B]
ride on the slide rail [C].
2) When re-installing the right tandem tray, make sure that the tandem tray
stopper [D] is set behind the stopper [E] on the frame.
B246R1052.WMF
B246R1053.WMF
[A]
[E]
[D]
[C]
[B]
