Ricoh MT-C1 - Operation Panel and External Covers; Operation Panel; Front Door

OPERATION PANEL AND EXTERNAL COVERS 15 February 2006
3-6

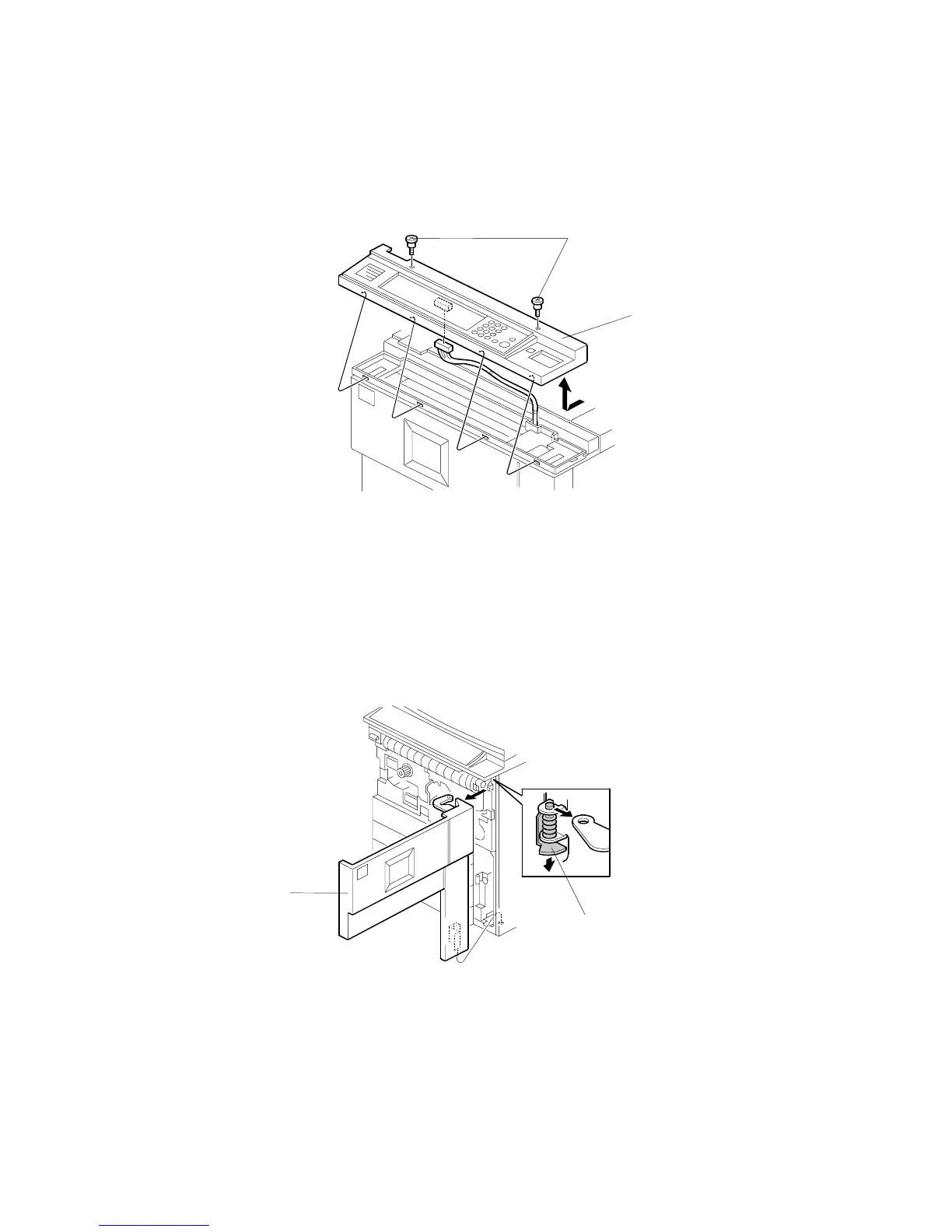

3.3 OPERATION PANEL AND EXTERNAL COVERS
3.3.1 OPERATION PANEL
[A]: Shoulder screws ( x 2)
[B]: Operation panel ( x 1)
3.3.2 FRONT DOOR
While supporting the front door [A] with one hand, press down on the hinge bracket
[B] then raise the door slightly to remove it.
B246R901.WMF
B246R902.WMF
[A]
[B]
[A]
[B]
