15 February 2006 IMAGE TRANSFER AND PAPER SEPARATION
6-85
Detailed
Descriptions

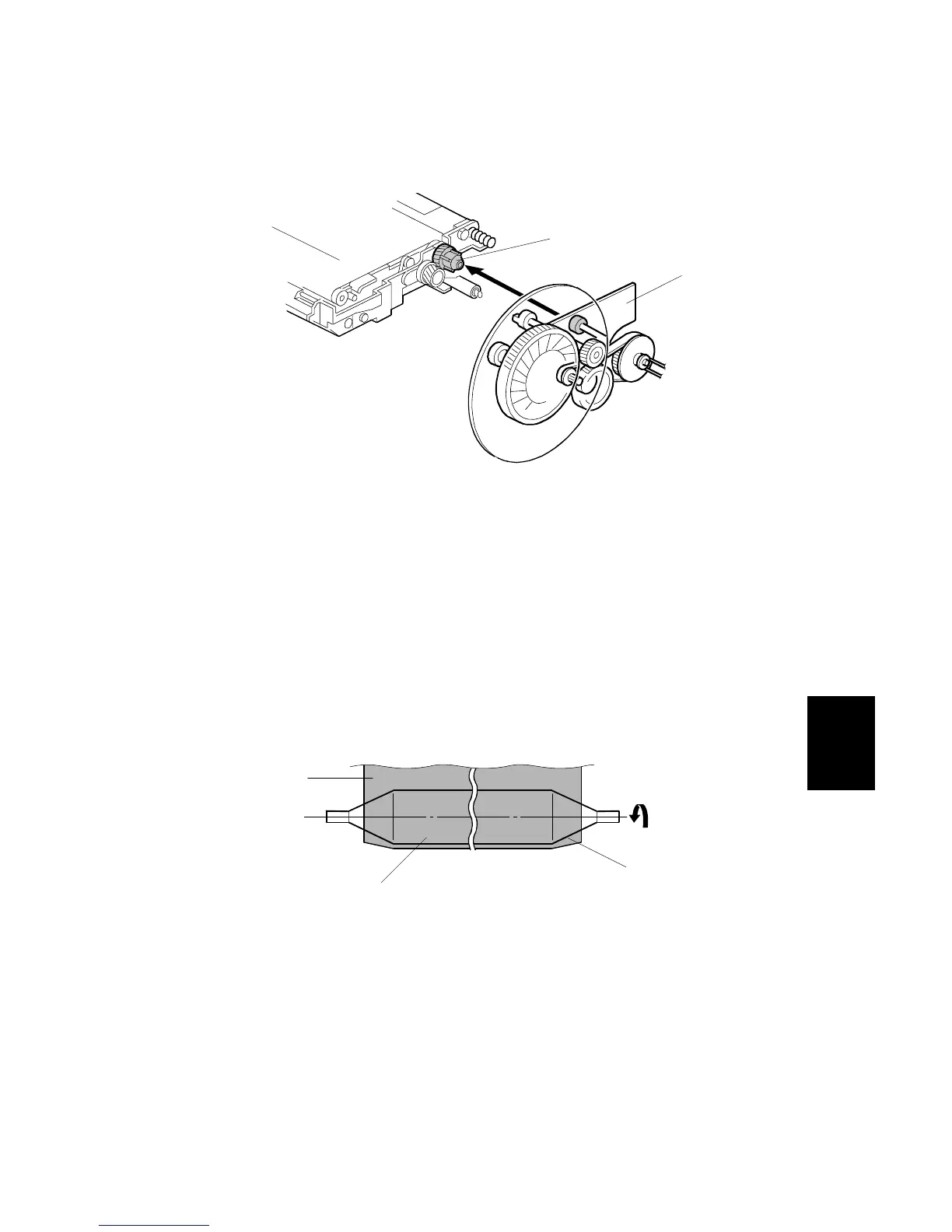

6.10.6 TRANSFER BELT DRIVE AND PAPER TRANSPORT
The drum motor [A] drives the transfer belt [B] through belts and gears.
The transfer belt by its electrostatic charge attracts the paper [B], so a transport fan
is not required.
At the turn in the transfer belt, the transfer belt drive roller [C] discharges the belt to
reduce paper attraction, and the paper separates from the belt as a result of its
own stiffness.
The tapered parts [D] at both ends of the roller [E] help keep the transfer belt [F] in
the center, so that it does not run off the rollers.
B246D945.WMF
B246D946.WMF
[D]
[E]
[F]
[A]
[B]
[C]
