Docking the Finisher and Interposer to the Machine (B700/B701/B706)

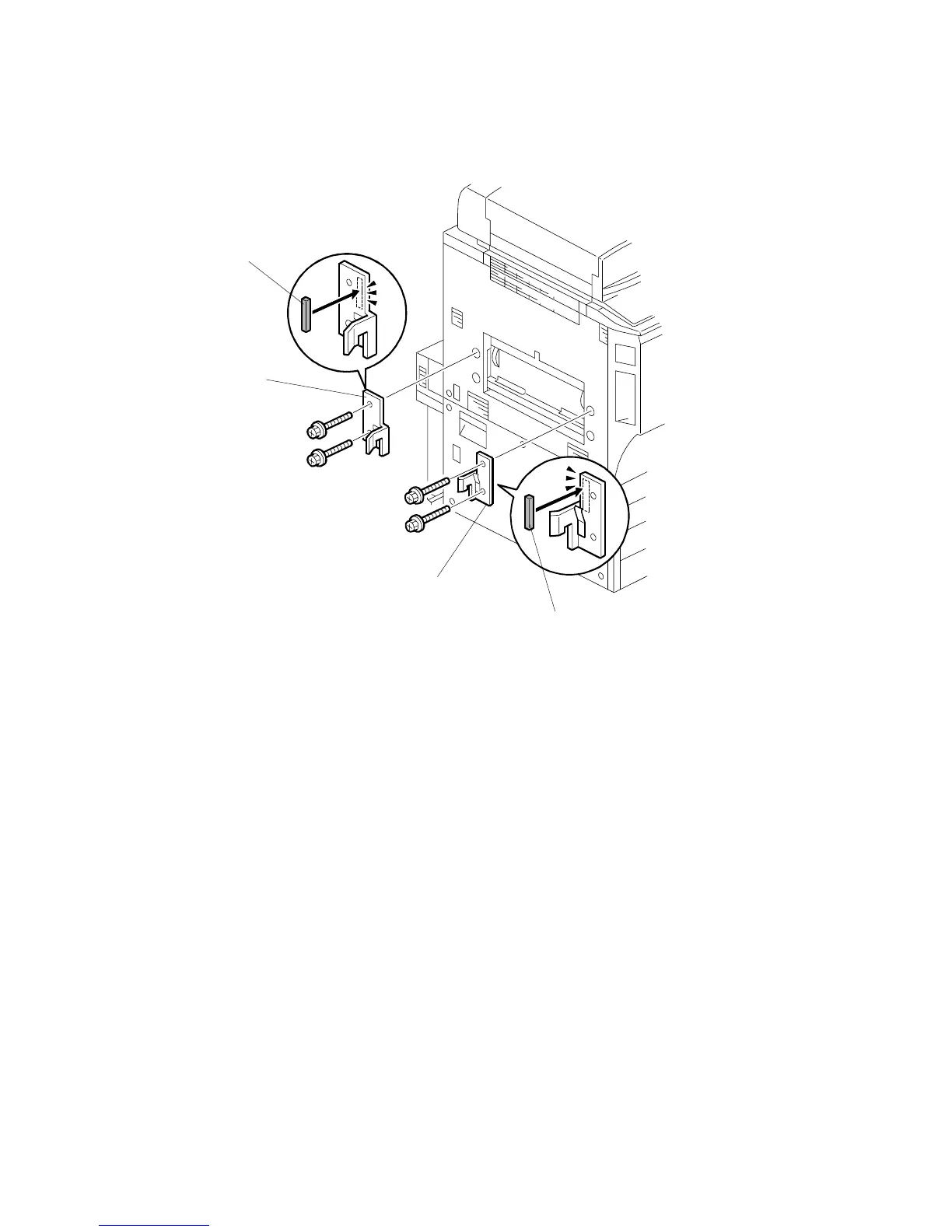

1. Attach the rear bracket [A] (" x 2, M4 x14).
2. Attach the front bracket [B] (" x 2, M4 x14).
3. Attach the gasket seals [C] and [D].
B704I121.WMF
[A]
[B]
[C]
[D]
