15 February 2006 COVER INTERPOSER TRAY (B704)
1-101
Installation

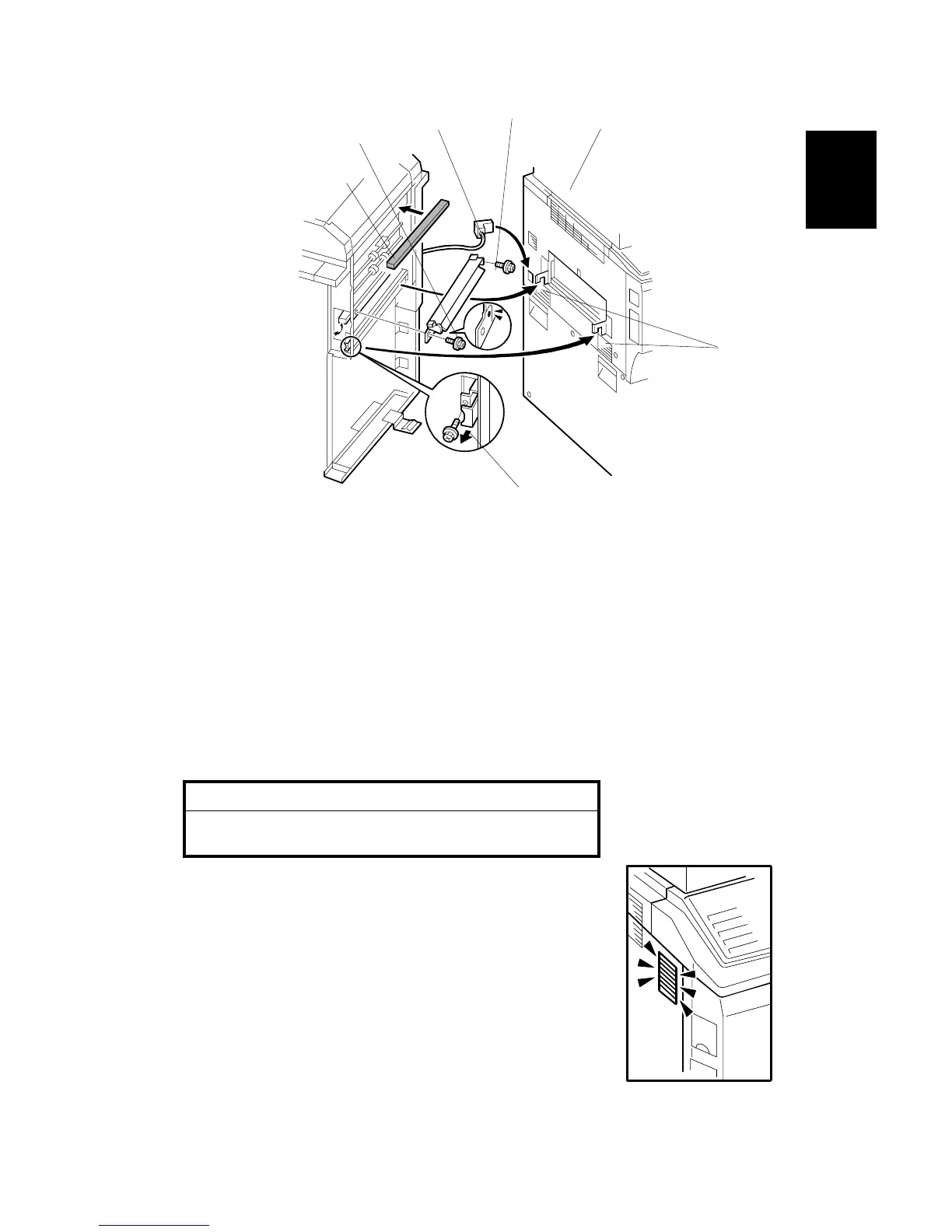

4. Attach the sponge strip [A] that is supplied with the finisher.
5. Attach the guide plate (removed from the finisher) to the cover interposer.
• Attach the front end [B] of the plate (" x 1).
• Attach the rear end of the plate with the anti-static brush [C] (" x 1).
Important: Use the two small tapping screws that are supplied, and not the
machine screws removed from the finisher guide plate.
6. Release the lock lever [D] (" x 1).
7. Attach the pad [E]. (This pad is provided with the finisher.)
8. Slowly push the finisher against the side of the machine until the brackets [F]
go into the slots.
!WARNING!
Move the finisher carefully, or you will bend the
entrance guide plates.
9. Attach the lock lever [D] (" x 1).
10. Connect the connector [G] to the copier.
Important!
• Check the duct $ on the left side of the machine.
• Make sure that the sponge does not prevent air
flow through this duct.
B704I106.WMF
B132I734.WMF
[A]
[G]
[F]
[B]
[C]
[E]
[D]
"
