1.8 COVER INTERPOSER TRAY (B470)
1.8.1 ACCESSORY CHECK
Check the accessories and their quantities against this list:
Description Q’ty
1. Front door extension (Top) ................................................ 1
2. Rear cover extension (bottom)........................................... 1
3. Shoulder screws ................................................................ 3
4. Tapping screws – M4 x 8................................................... 7
5. Tapping screws – M3 x 6................................................... 2
6. Tapping screws – M3 x 6................................................... 5
7. Ground Plate...................................................................... 1
8. Plate extension (bottom).................................................... 1
9. Right rear cover plate (for B478/B706 only)....................... 2
10. Right front corner plate (for B478/B706 only)..................... 2
11. Spacer (B468/B469/B674 only) ......................................... 1
12. Front door extension (bottom)............................................ 1

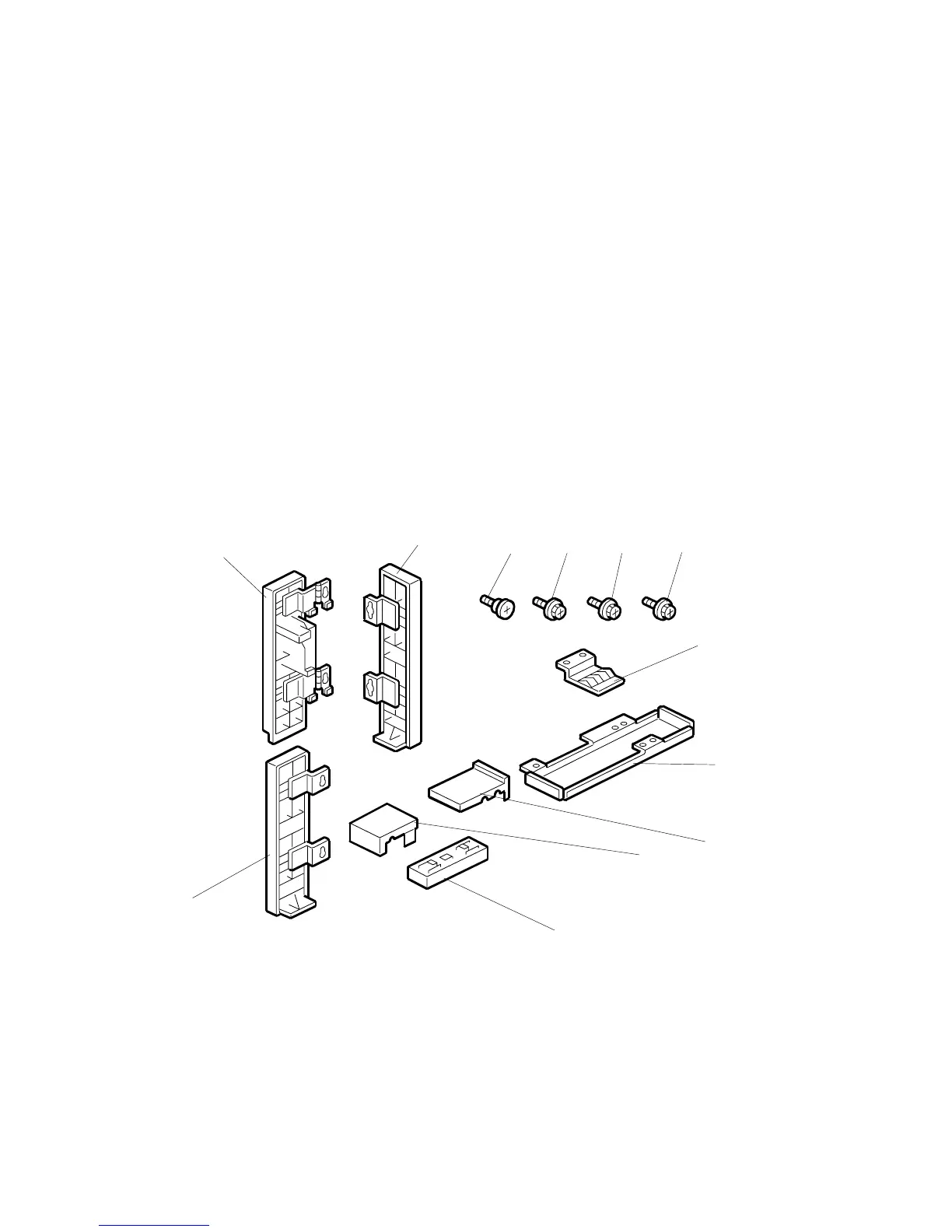

B470I006.WMF
1
2
3
4
5
6
7
8
10
11
12
9
