PAPER FEED 15 February 2006
6-88
6.11 PAPER FEED

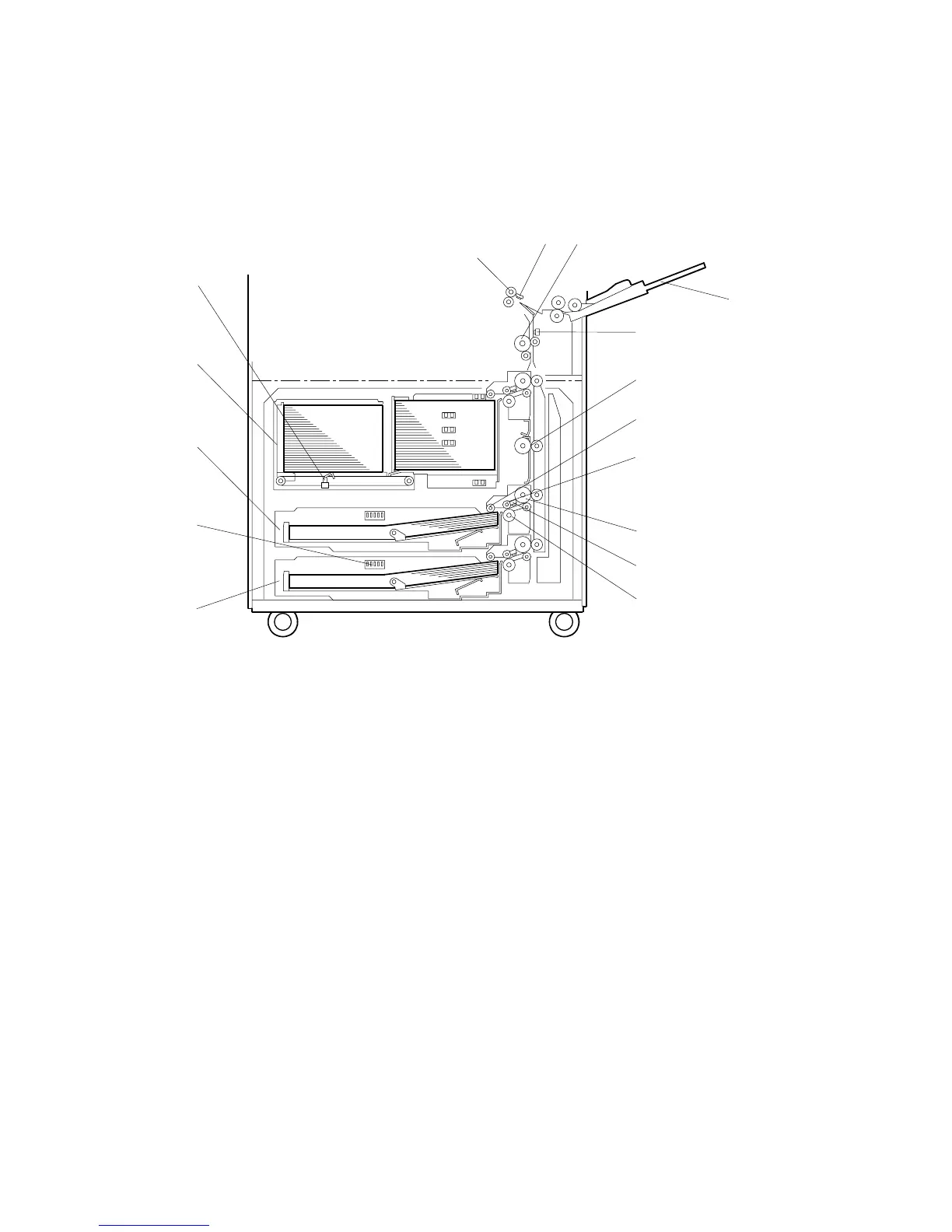

6.11.1 OVERVIEW
1. Tandem Tray (Tray 1)
2. Left Tray Paper Sensor
3. Universal Tray (Tray 2)
4. 3rd Paper Size Switch
5. Universal Tray (Tray 3)
6. Registration Roller
7. Registration Sensor
8. Upper Relay Roller
9. By-pass Tray
10. Relay Sensor
11. Lower Relay Roller
12. Pick Up Roller
13. Feed Roller
14. Grip Roller
15. Paper Feed Sensor
16. Separation Roller
NOTE: Items (12)~(16) comprise the standard FRR feed system, which is used for
Trays 1, 2, and 3. This machine uses motor on/off time (not clutches) to
control paper feed.
B246D906.WMFF
1
2
3
4
5
6
7 8
9
10
12
13
14
11
15
16
