PAPER FEED 15 February 2006
6-106
6.11.9 TRAY POSITIONING MECHANISM – TRAYS 1 TO 3

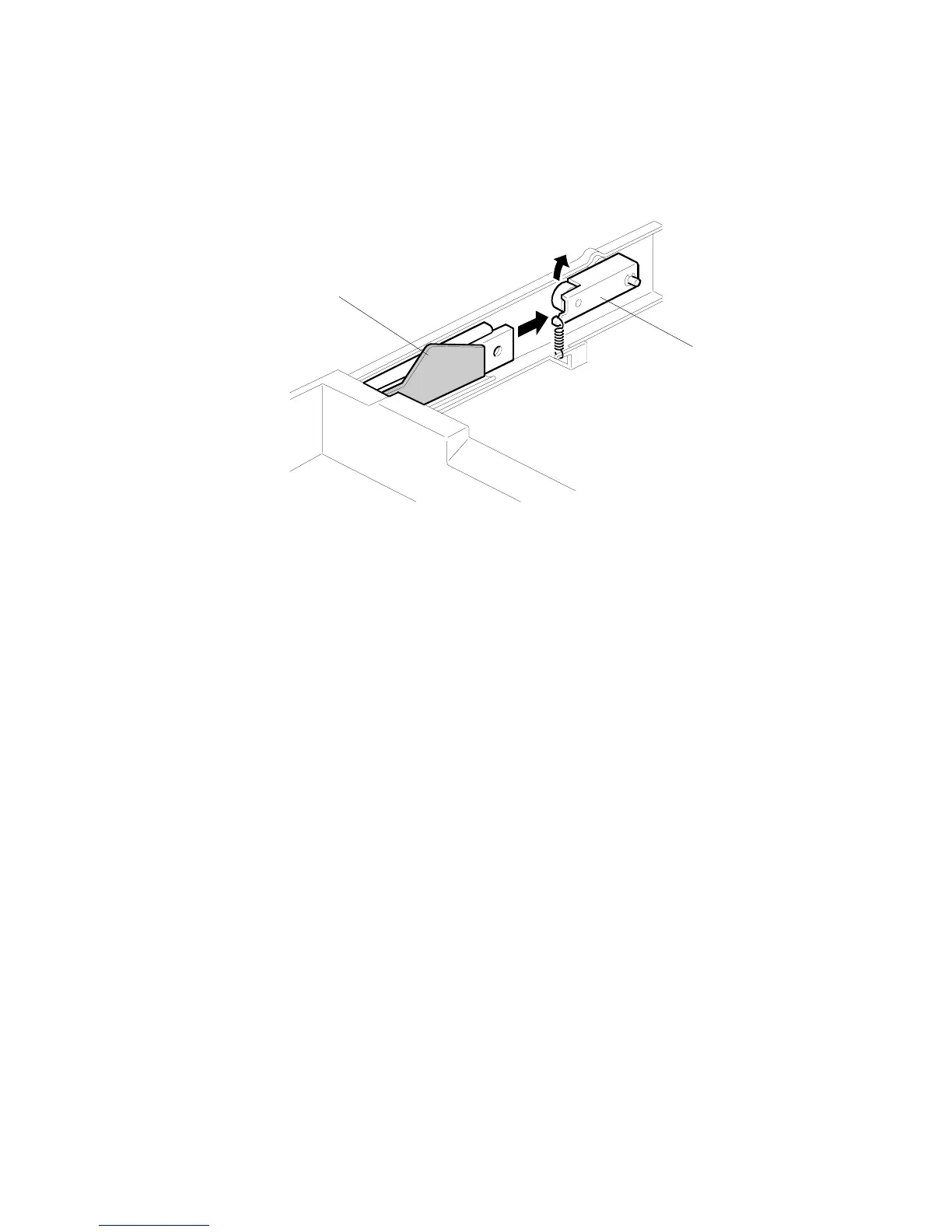

When the tray is placed in the paper feed unit, the lock lever [A] drops behind the
lock plate [B] on the support bracket to lock the tray in the proper position.
B246D970.WMFF
[A]
[B]
