Ricoh MT-C1 - Prepare the Cover Interposer for the B706

COVER INTERPOSER TRAY (B704) 15 February 2006
1-94
Prepare the Cover Interposer for the B706
1. Remove spacer [A] (" x1).
2. Attach spacer [B] (" x1).
3. Remove the screws from the connector case [C] (" x2).
4. Push the connector case in the direction of the arrow until the second set of
holes are aligned with the holes below, then attach the screws.

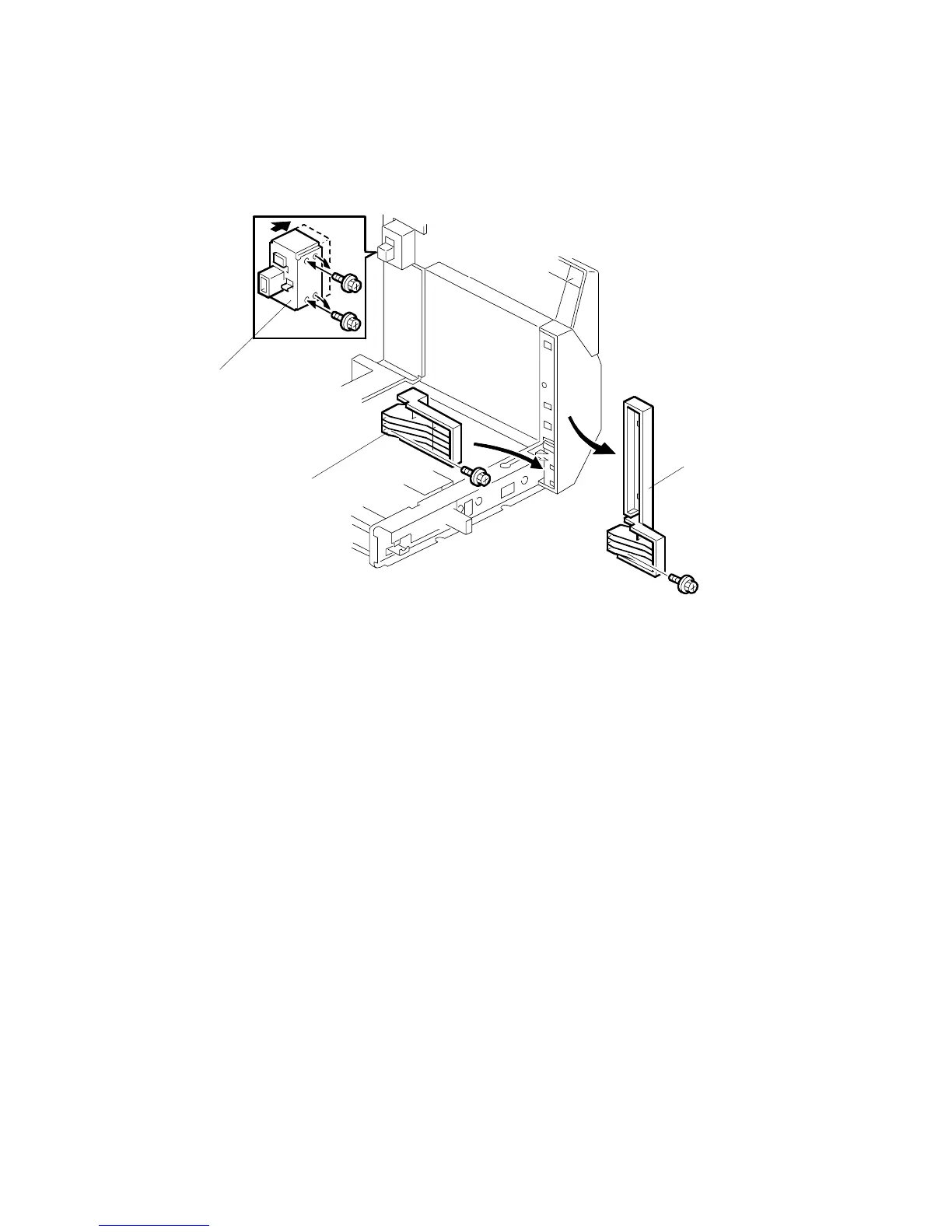

B706I900.WMF
[A]
[B]
[C]
