3.11.15 REGISTRATION AND BY-PASS UNIT REMOVAL
1. Remove the development unit. (☛ 3.6.1)
2. Remove the inner cover. ( x 4)
3. Disconnect the toner bottle holder connector [A] and counter connector [B].
4. Pull out the duplex unit about 10 cm.
• Confirm that the registration roller is separated from the positioning pin.
5. Remove the right upper cover. (☛ 3.3.3)
6. Rear upper cover (☛ 3.3.5)
7. Disconnect the following connectors:
• Relay clutch connector [C]
• Guide plate solenoid connector [D]
• Guide plate sensor connector [E]
• By-pass tray unit connectors [F]

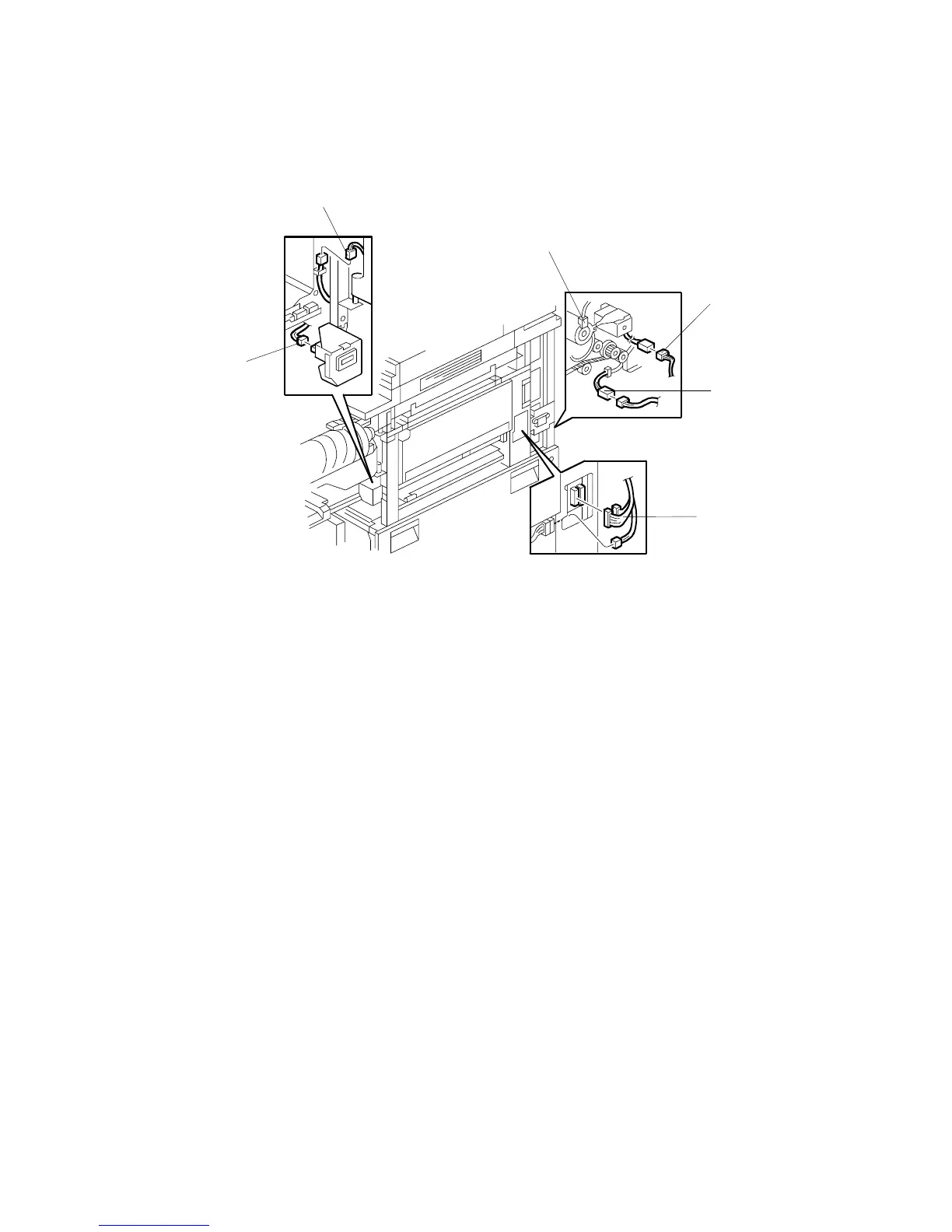

B246R1096.WMF
[A]
[B]
[C]
[D]
[E]
[F]
