15 February 2006 PAPER FEED
3-105
Replacement
Adjustment

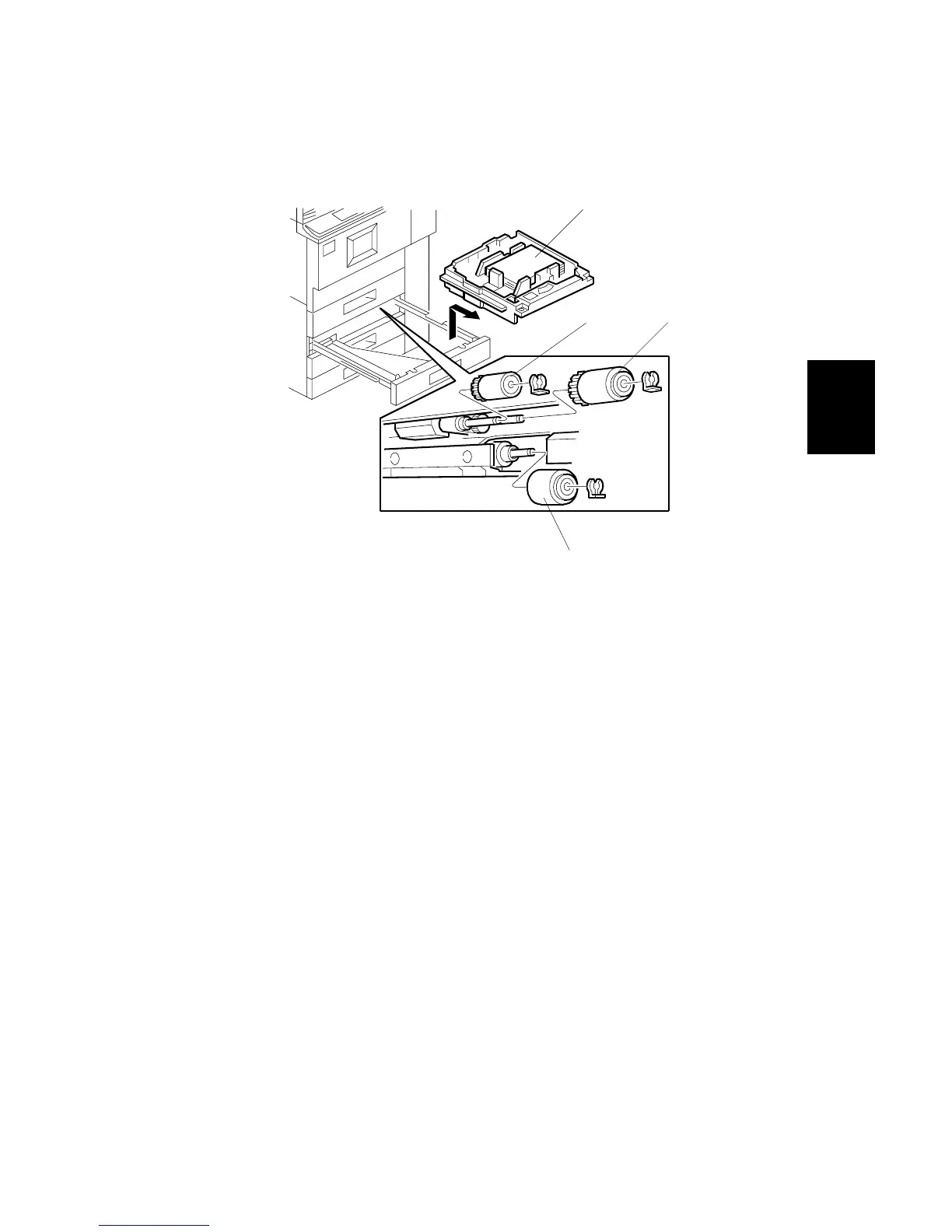

3.11.7 PICK-UP, FEED, SEPARATION ROLLER REPLACEMENT
[A]: Remove the tray.
[B]: Feed roller ( x 1)
[C]: Pick-up roller ( x 1)
[D]: Separation roller ( x 1)
NOTE: 1) The operation of the FRR mechanisms for the tandem tray (Tray 1),
universal trays (Tray 2, Tray 3), by-pass tray, and ADF are similar.
However, the only rollers that are interchangeable are the tandem and
universal tray rollers (Trays 1, 2, 3).
2) Do not touch the surface of new rollers during replacement.
B246R1067.WMF
[A]
[B]
[C]
[D]
