ADF 15 February 2006
3-144

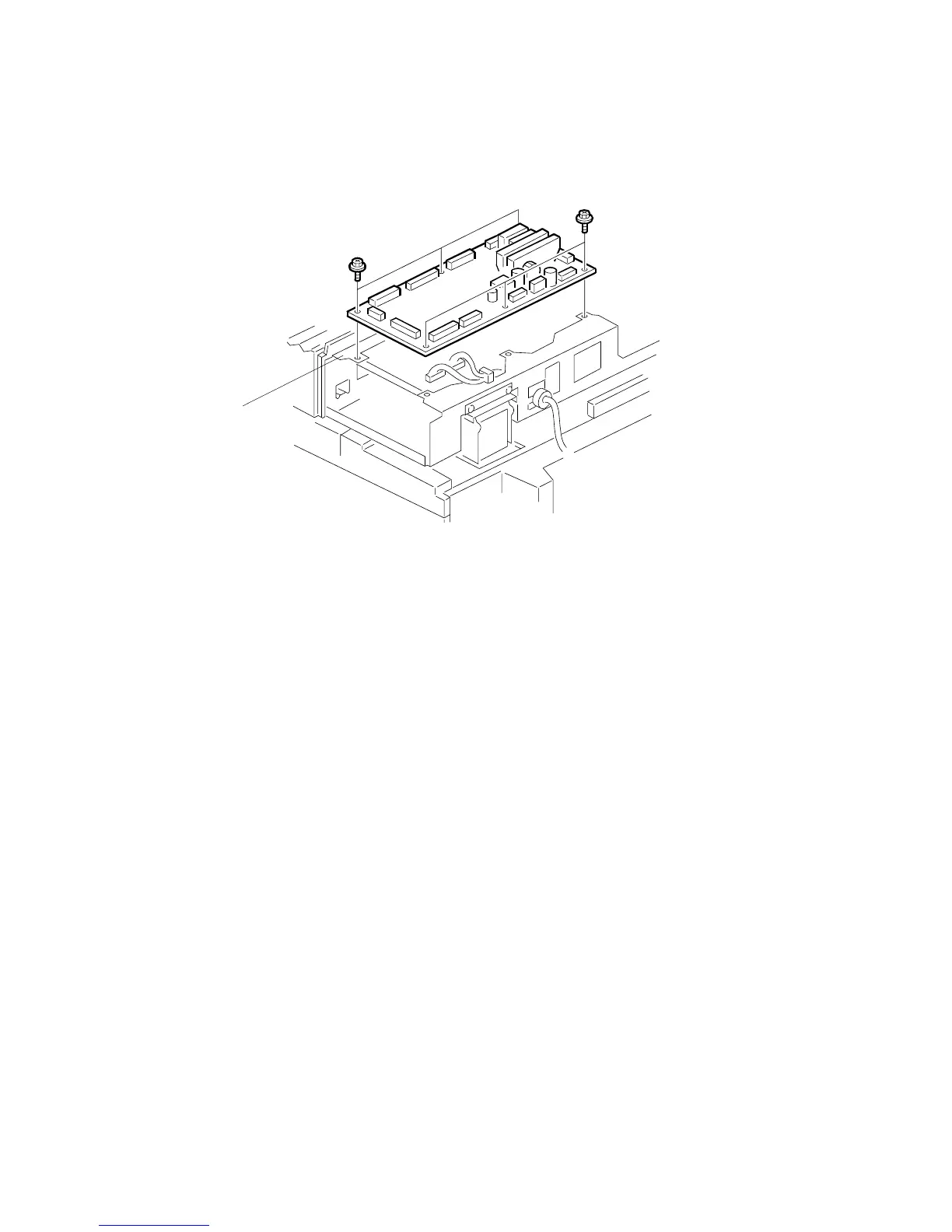

3.13.6 ADF CONTROL BOARD
ADF rear cover (☛ 3.13.1)
[A]: ADF board ( x 2, x 14)
B140R873.WMF
[A]
