15 February 2006 PAPER FEED
3-109
Replacement
Adjustment

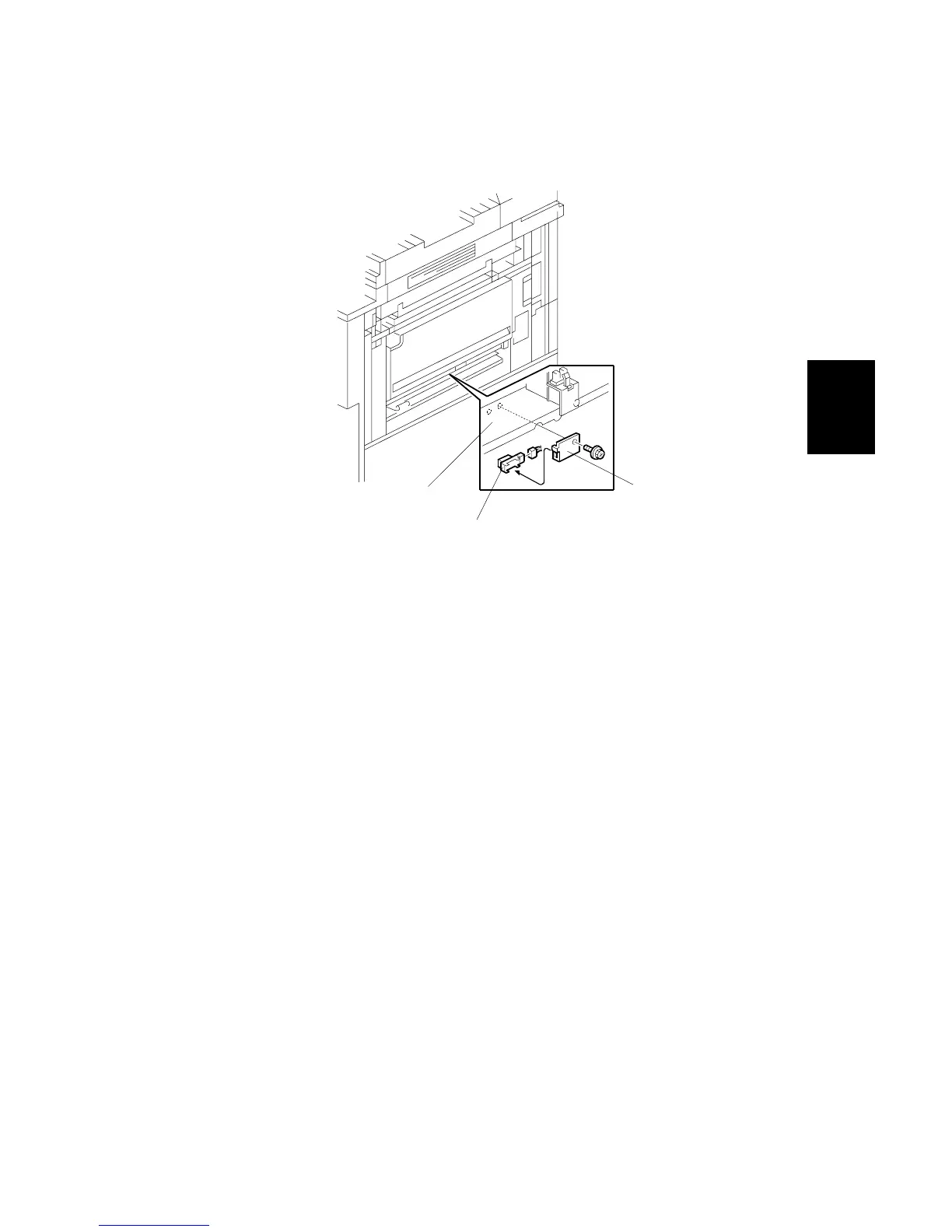

3.11.10 RELAY SENSOR
[A]: Remove the LCT entrance guide cover.
[B]: Relay sensor bracket ( x 1)
[C]: Relay sensor ( x 1)
B246R1080.WMF
[A]
[B]
[C]
