15 February 2006 MFP OPTIONS: B246 SERIES
1-199
Installation
1.24.15 IEEE1284 B679
Accessories
Description Q’ty
1. IEEE 1284 Centronics Board................................................. 1
Only one PCI slot (B2) is available for one of these options:
• Centronics 1284
• IEEE 1394 (FireWire)
• IEEE 801.11b (Wireless LAN)
• Bluetooth Interface Unit B826
• Cumin-M B818
Important
• If another card is installed in B2, you must remove it before installing this card.
Installation
1. Switch the machine off.
2. Remove the cover [A] of Slot B2 (! x 2).

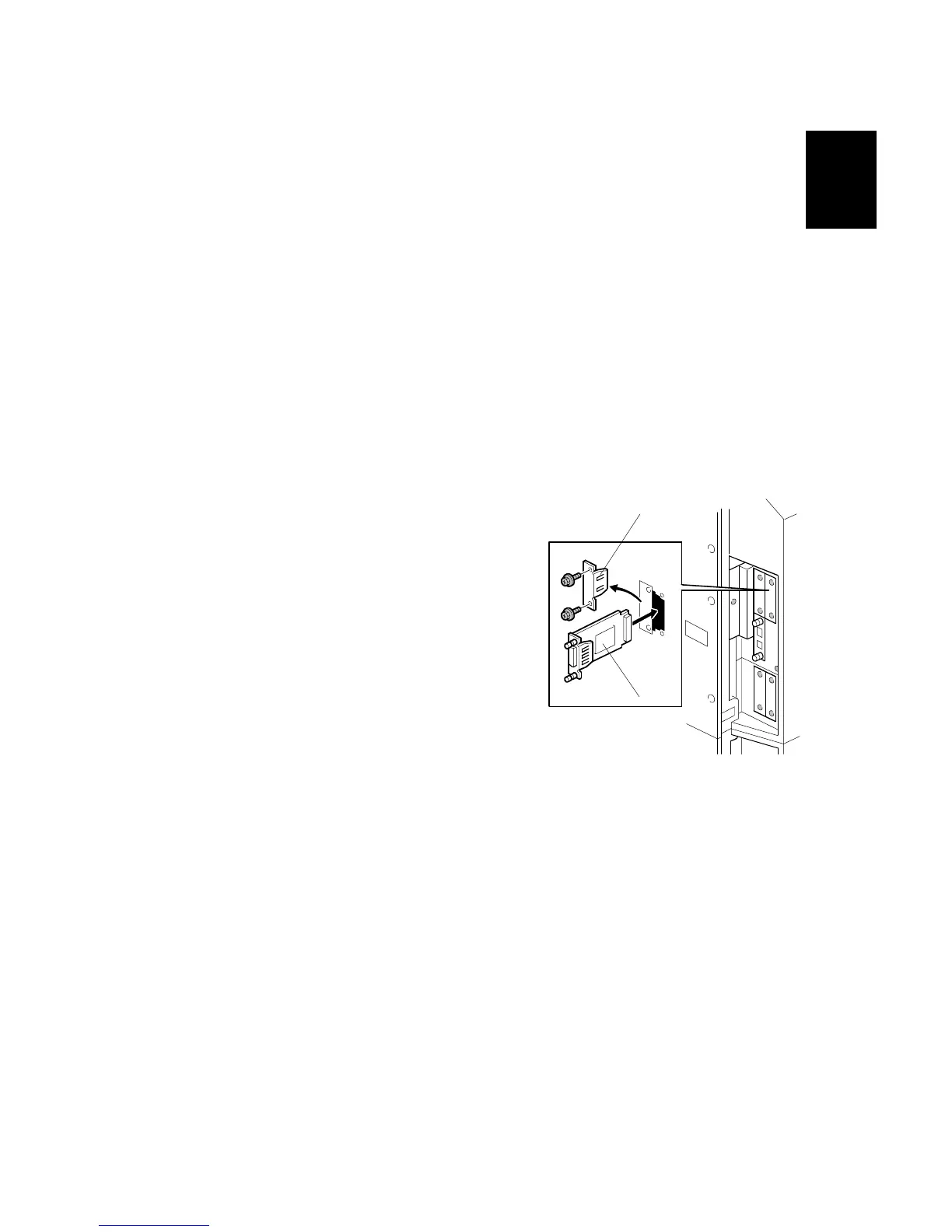

3. Insert the 1284 Centronics board [B] into
Slot B2 and fasten it with the screws.
B679I101.WMF
[A]
[B]
