Ricoh MT-C1 - Exit

IMAGE FUSING AND PAPER EXIT 15 February 2006
6-126
6.12.9 EXIT

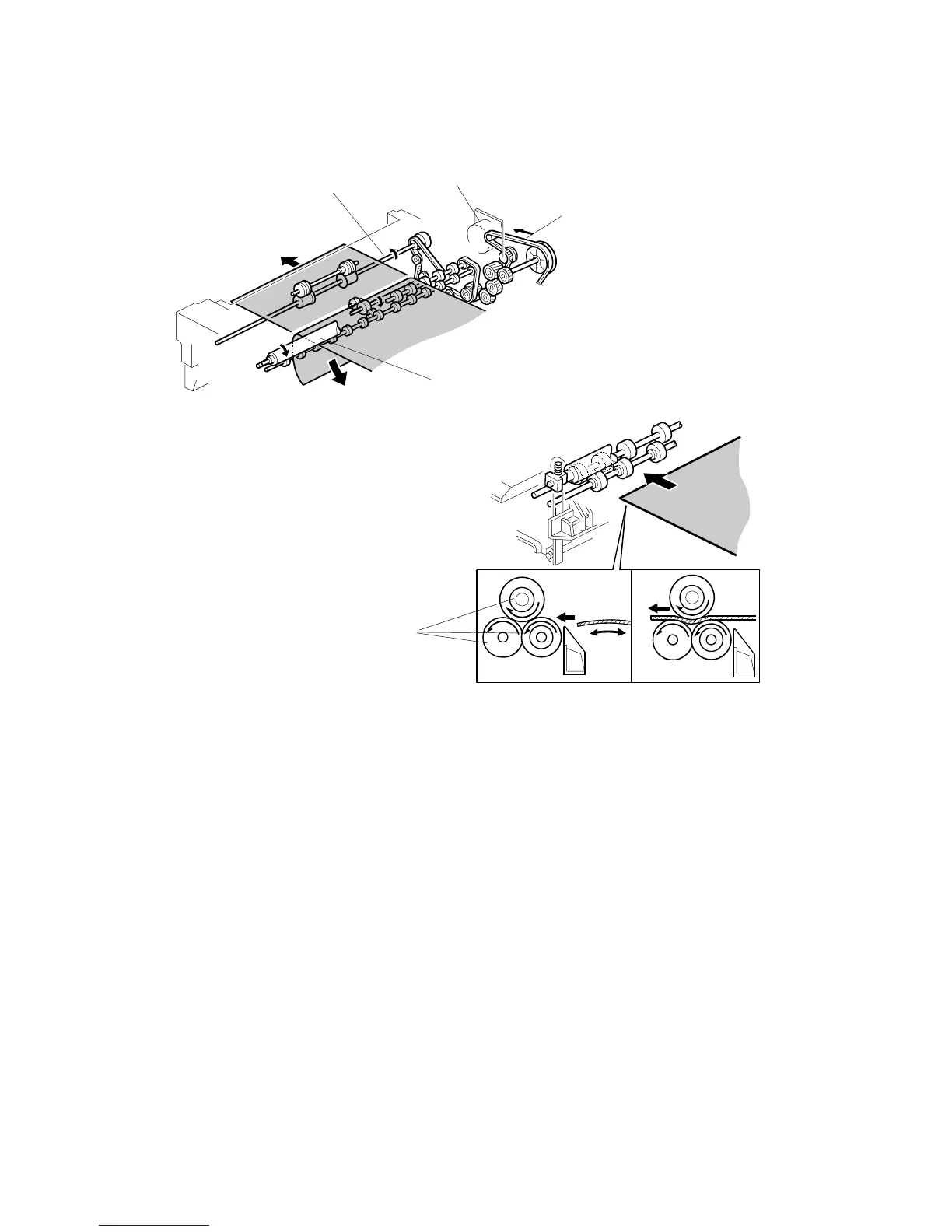

Fusing/exit motor [A] → timing belt [B] → exit roller [C] via gears and timing belts.
The de-curler rollers [D] remove curl from the paper before it exits. This improves
feed through the duplex unit and finishers.
B246D990.WMF
B246D991.WMFF
[B]
[A]
[C]
[D]
[D]
