15 February 2006 PAPER FEED
6-91
Detailed
Descriptions

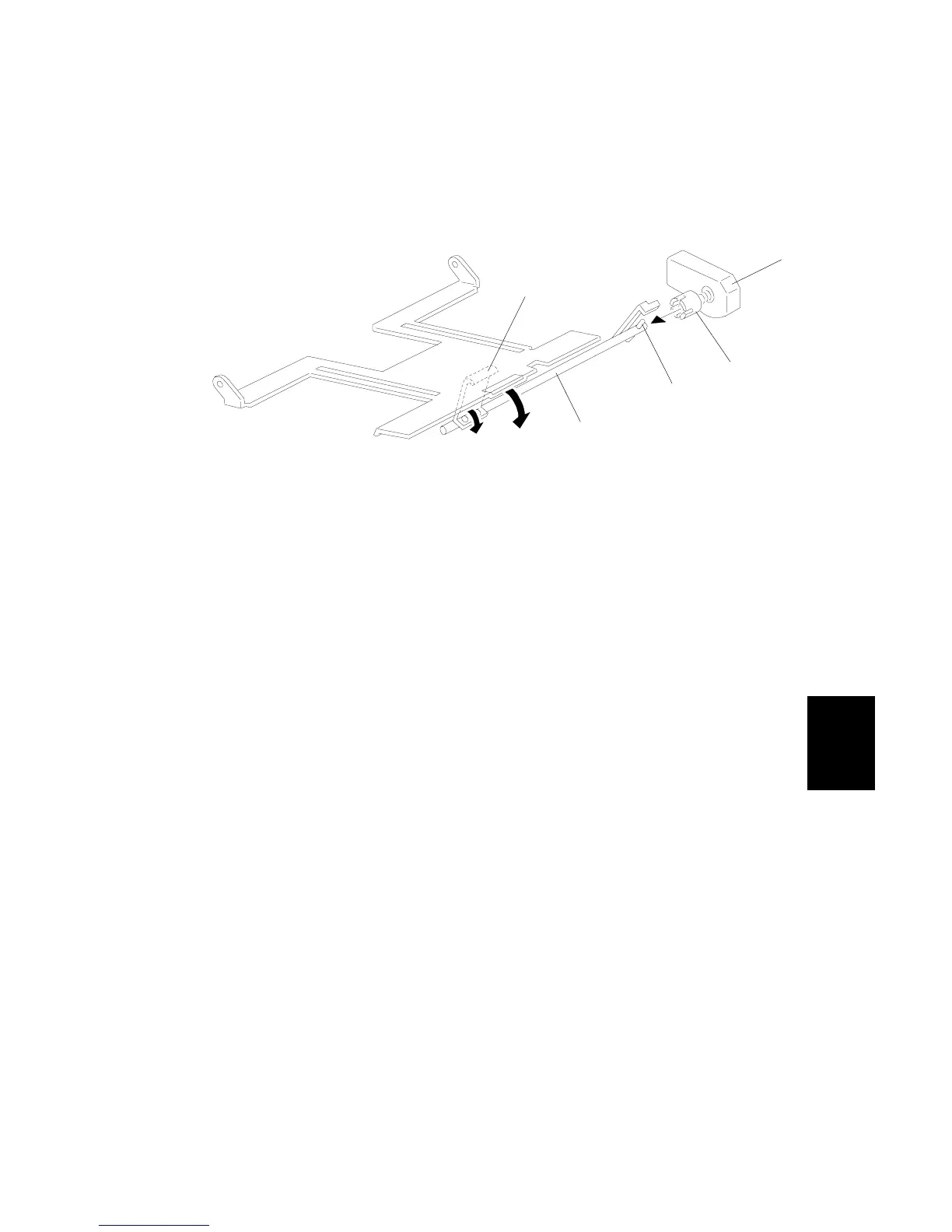

6.11.3 TRAY AND PAPER LIFT MECHANISM – TRAY 2,3
Bottom Plate Lift
Tray lift motor [A] ! Coupling [B] ! Pin [C] ! Shaft [D] ! Lift arm [E] (under the
bottom plate).
The universal trays (Tray 2, Tray 3) are not provided with near end sensors. The
pulse count of the tray lift motor is used to signal near end.
B246D948.WMFF
[A]
[B]
[C]
[D]
[E]
