Ricoh MT-C1 User Manual

15 February 2006 SCANNER
3-21
Replacement
Adjustment

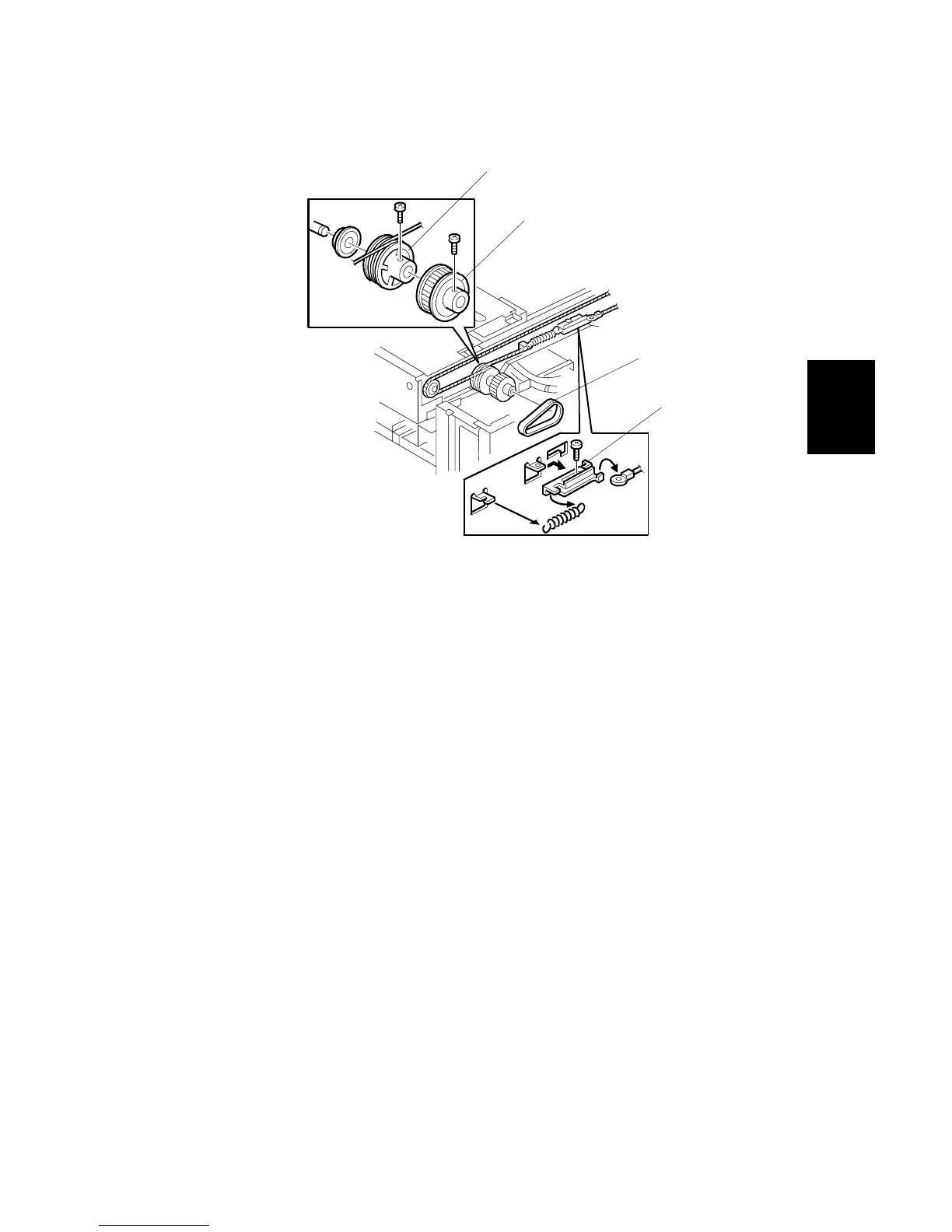

Wire Removal: Back
[A]: Drive pulley ( x 1)
[B]: Timing belt
[C]: Tension bracket ( x 1, spring x 1)
[D]: Rear wire pulley ( x 1) and rear scanner wire
B246R922.WMF
[A]
[B]
[C]
[D]
