PUNCH UNIT (B531/B812) 15 February 2006
1-60
1.11.2 INSTALLATION
!CAUTION
Switch the machine off and unplug the machine before starting the
following procedure.
1. If the finisher is connected to the machine, disconnect it.
2. Open the front door and remove the rear cover (" x 2).

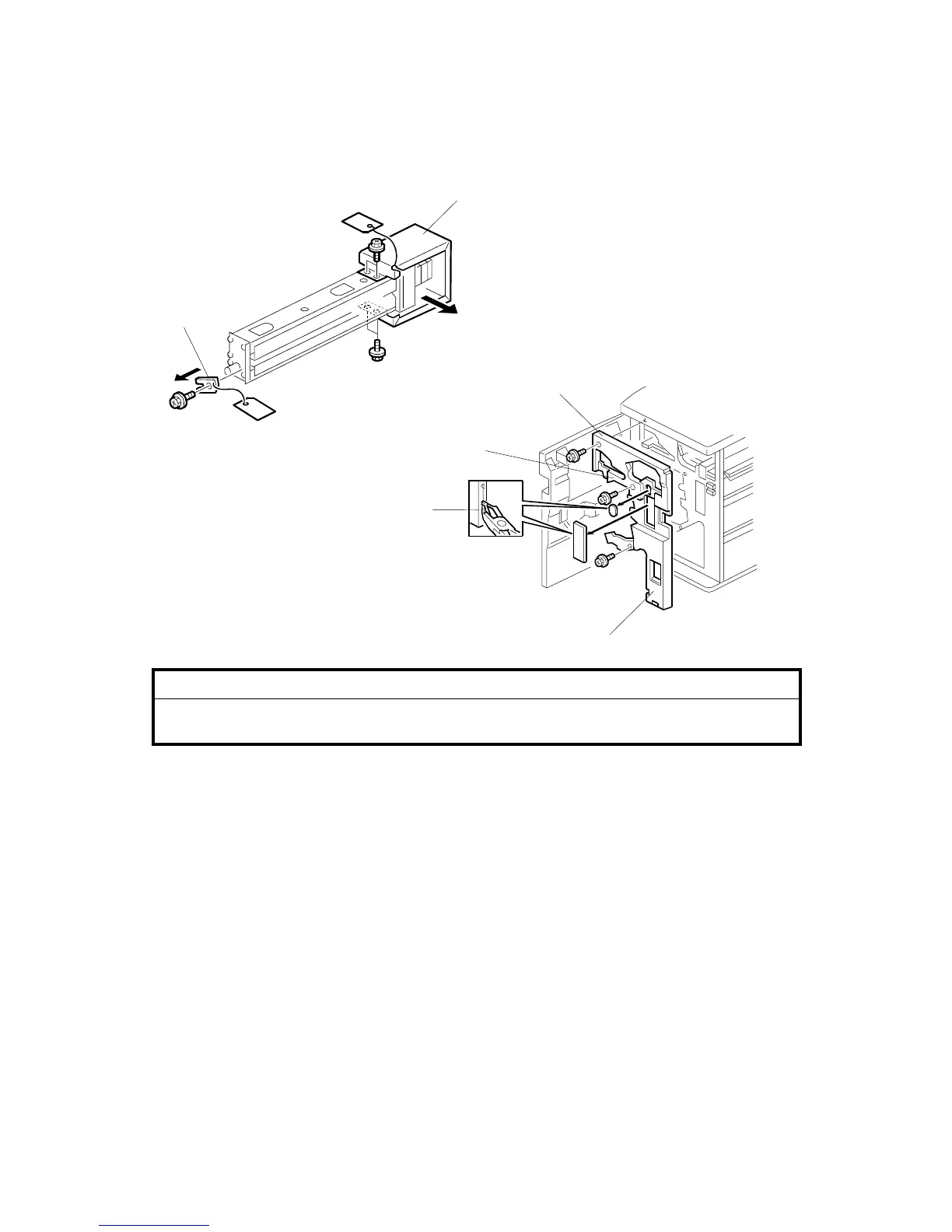

3. Unpack the punch unit and remove the motor protector plate [A] (" x 4) and the
cam lock plate [B] (" x 1).
4. Remove the inner cover [C] (" x 3).
5. Behind the inner cover at [D] and [E], press the lock tab to the right to release
the inner cover from the frame.
6. Remove the plastic knockouts [F].
B531I09.WMF
B531I002.WMF
[C]
[D]
[E]
[F]
[A]
[B]
