1.19 COPY TRAY (B756)
1.19.1 ACCESSORIES
Check the accessories and their quantities against the following list.
Description Q’ty
1. Copy Tray .......................................................................... 1
2. Actuator Arm and Bracket (not used)................................. 1
3. Tapping Screw (not used).................................................. 2
4. Large Cap.......................................................................... 1
5. Small Cap .......................................................................... 4
6. Tapping Screw (M4 x 8)..................................................... 1
7. Harness Clamp .................................................................. 1
8. Paper Height Sensor ......................................................... 1
9. Actuator Arm Bracket......................................................... 1
10. Sensor Bracket .................................................................. 1
11. Actuator Arm...................................................................... 1

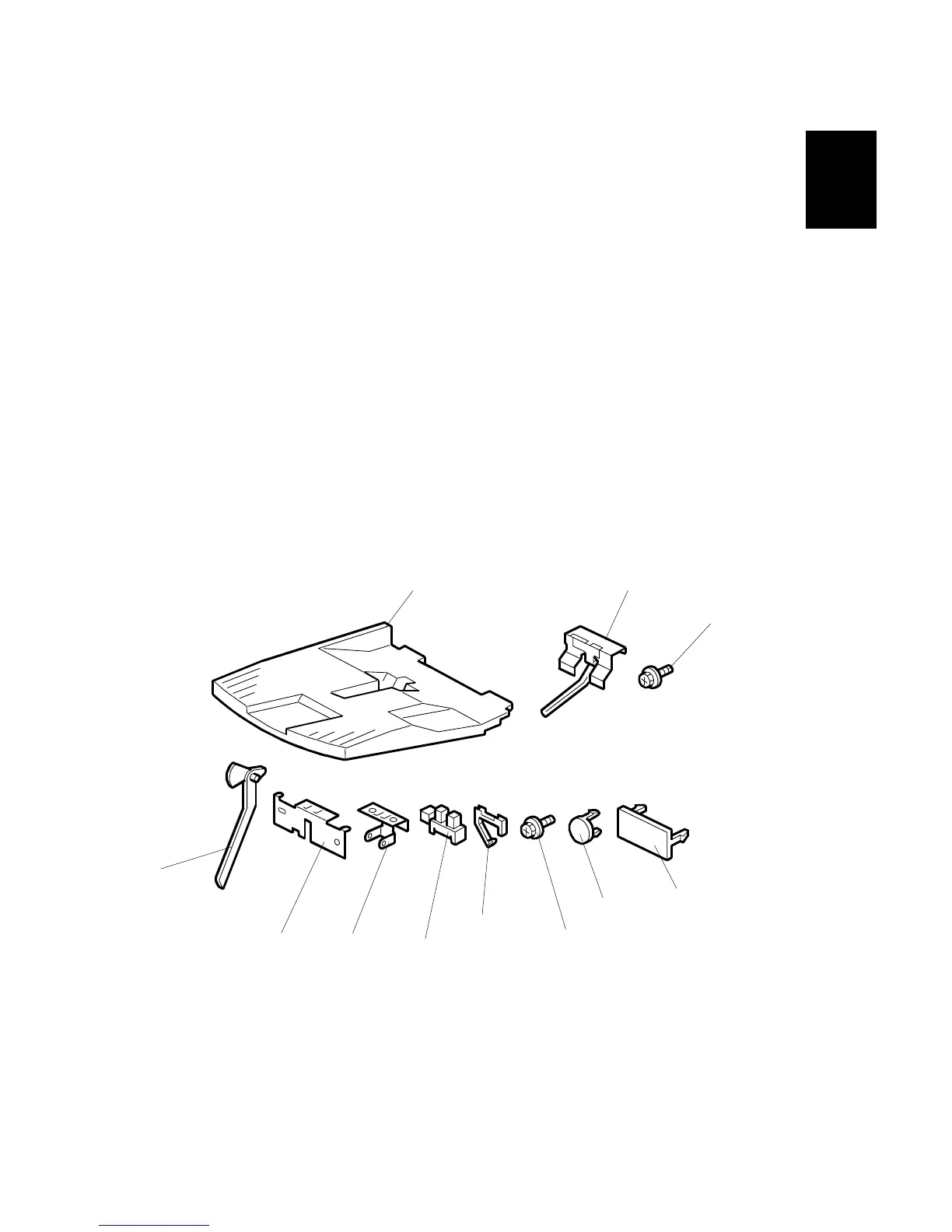

B756I001.WMF
10
11
1 2
3
4
5
6
7
8
9
