3.9.7 PRESSURE ROLLER CLEANING UNIT
B064 Series
Fusing unit (☛ 3.9.1)
[A]: Lower cover ( x 1)
[B]: Cleaning roller bracket ( x 2)
[C]: Cleaning roller ( x 1)
NOTE: 1) When attaching the lower cover of the pressure roller cleaning roller,
make sure that the tab [D] engages with the groove [E].
2) If the bushings are noisy after replacement, lubricate them on both ends
and the holes where the bushings are attached with Barietta Grease
L553R.

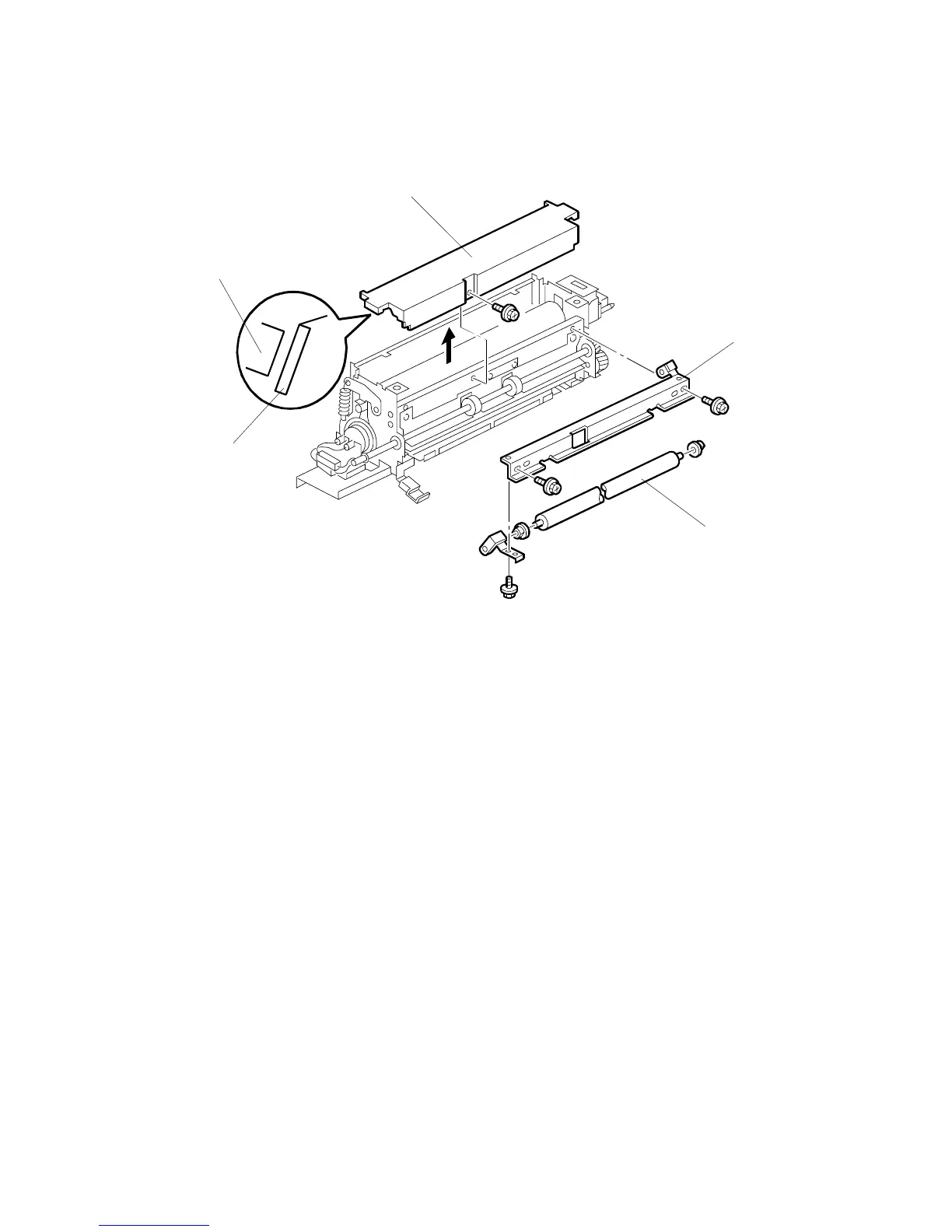

B246R1000.WMF
