Ricoh MT-C1 - Feed Unit

ADF 15 February 2006
3-140
3.13.2 FEED UNIT

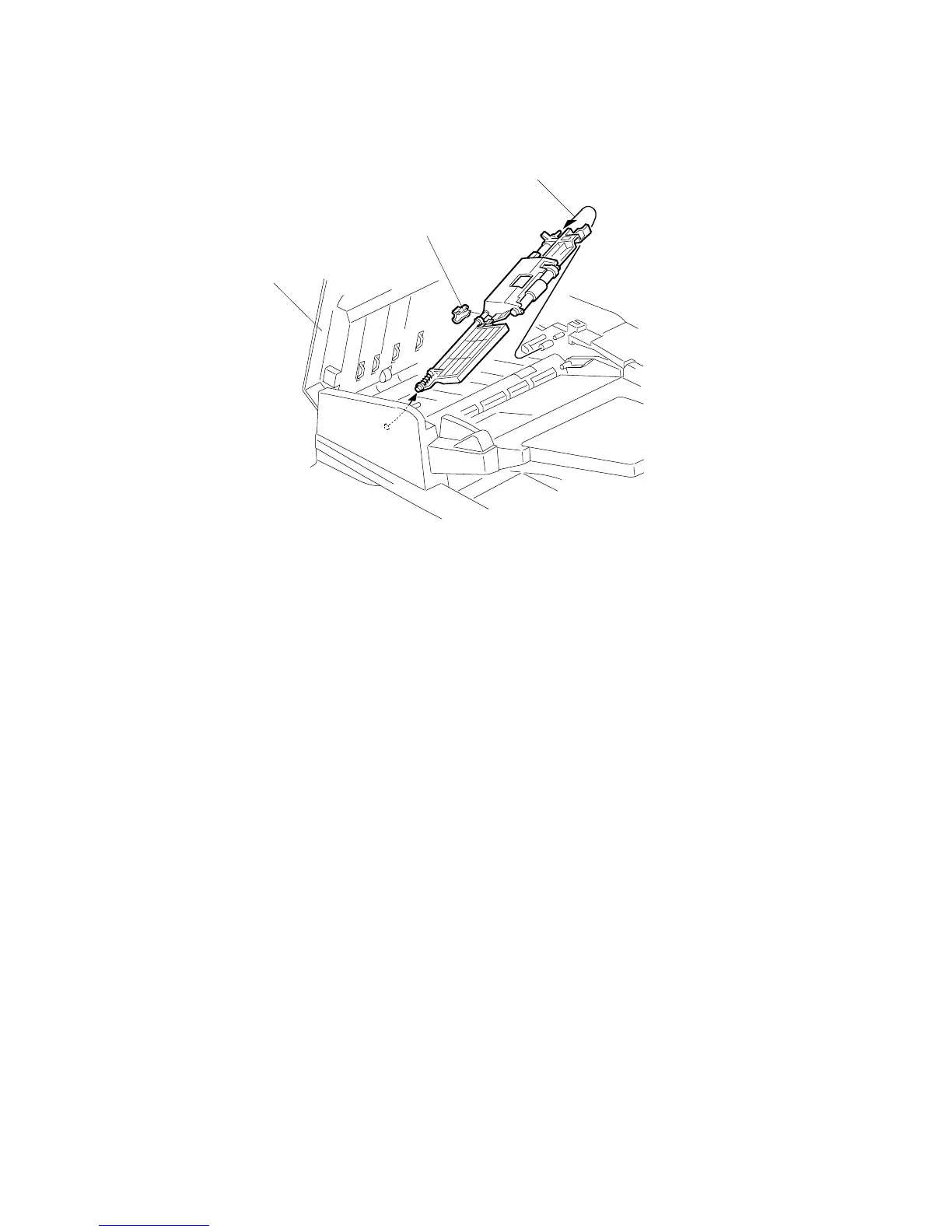

1. Open the feed cover [A].
2. Remove the snap fitting [B].
3. Push the feed unit slowly to the left to disengage the shaft [C] on the right, then
lift it out.
B140R867.WMF
[A]
[B]
[C]
