15 February 2006 COPY IMAGE ADJUSTMENTS: PRINTING/SCANNING
3-157
Replacement
Adjustment
3.14.3 ADF SCANNING ADJUSTMENTS
Vertical Black Lines
Vertical black lines in scanned images may be caused by dust or scratches on the
ADF exposure glass. If the problem cannot be solved by cleaning the ADF
exposure glass, execute SP4018 (Scanner Optical Axis Adjustment).
1. Adjust the scanner stopping position with SP4018-003 (just input a new value).
2. Store this value in the machine with SP4018-004.
3. Adjust the ADF registration for the front side scan with SP6006-003.
4. Make a test copy to check that the problem has been solved.
DIP Switch Settings (ADF Main Board)
SW 101
1 2 3 4
Operation Mode
OFF OFF OFF OFF I/F Operation
ON OFF OFF OFF Free run (Simplex: each sheet stopped for registration)
OFF ON OFF OFF Free run (Simplex: continuous scanning)
ON ON OFF OFF Free run (Duplex: no registration) SP6009 (ADF Free Run)
ON OFF ON OFF
OFF ON ON OFF
ON ON ON OFF
OFF OFF OFF ON
Not used.
ON OFF OFF ON Free run (Entrance mode
*1
, simplex, no registration)
OFF ON OFF ON Free run (Entrance mode, simplex, continuous scanning)
OFF ON ON ON Motor test (feed, transport, exit motors)
*1
: The entrance mode disregards paper size. Skew correction is performed at the scanning roller.

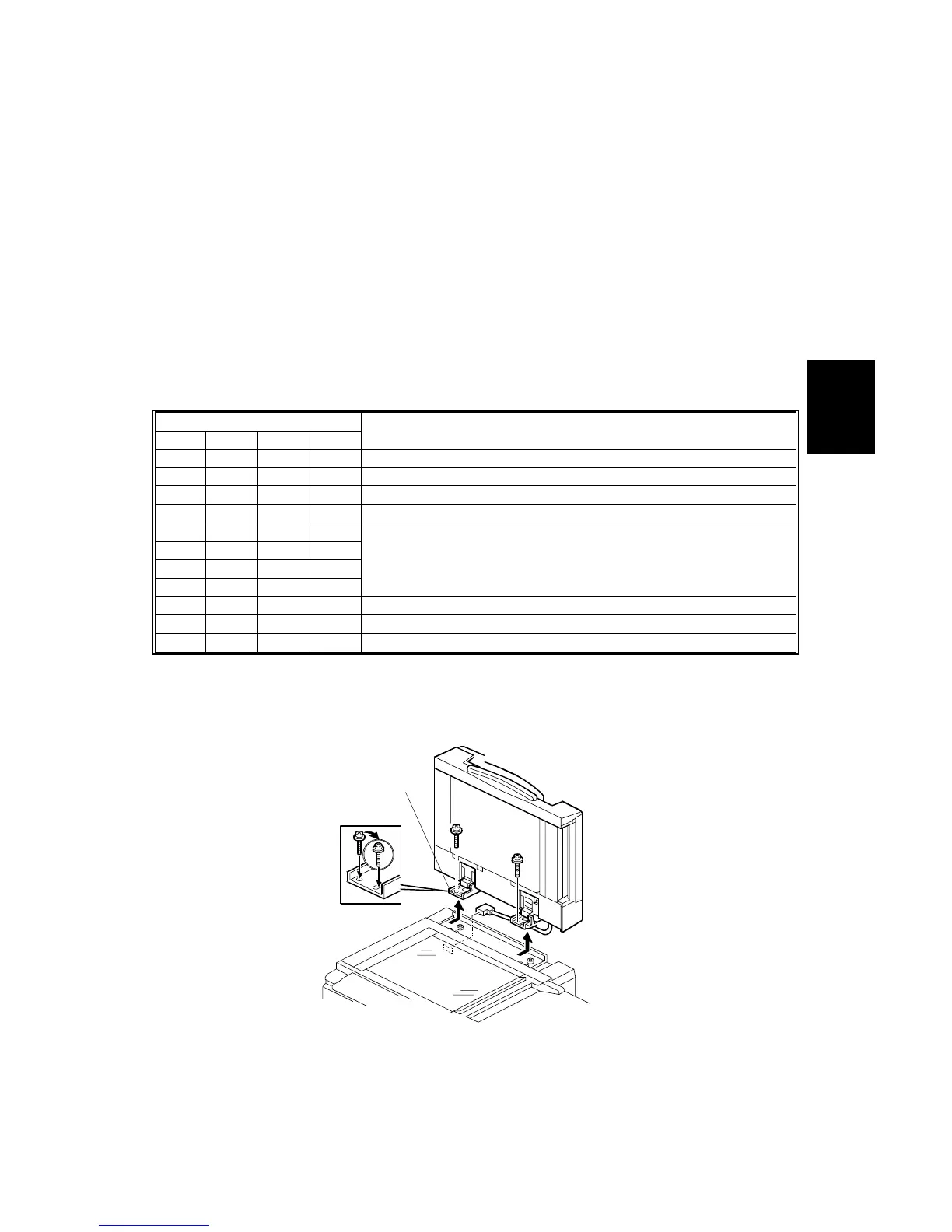

ADF Skew Correction
If the skew with A4 SEF paper is more than 0.5/200 mm in the main scan direction, you
can adjust the position of the ADF hinge [A] or adjust the appropriate SP codes below.
B140R891.WMF
[A]
