Ricoh MT-C1 - Wireless Lan G813 (802.11 B); Accessories; Installation

15 February 2006 MFP OPTIONS: B246 SERIES
1-183
Installation
1.24.6 WIRELESS LAN G813 (802.11B)
Accessories
Description Q’ty
1. IEEE 801.11b Board ..............................................................1
2. PCI Card................................................................................1
3. Cover Cap..............................................................................1
Installation
Only one PCI slot (B2) is available for one of these options:
• Centronics 1284
• IEEE 1394 (FireWire)
• IEEE 801.11b (Wireless LAN)
• Bluetooth Interface Unit B826
• Cumin-M B818
Important
• If another card is installed in B2, you
must remove it before installing this
card.
1. Switch the machine off.
2. Remove the cover [A] of Slot B2 (! x
2).
3. Insert the PCI card [B] into the
wireless LAN board [C].
4. Insert the wireless LAN board [C] into
Slot B2 and fasten it with the screws.
5. Attach the cap [D].
6. Switch the machine on and print a
configuration page to confirm that the machine recognizes the installed board:
User Tools> Printer Features> List/Test Print> Configuration Page

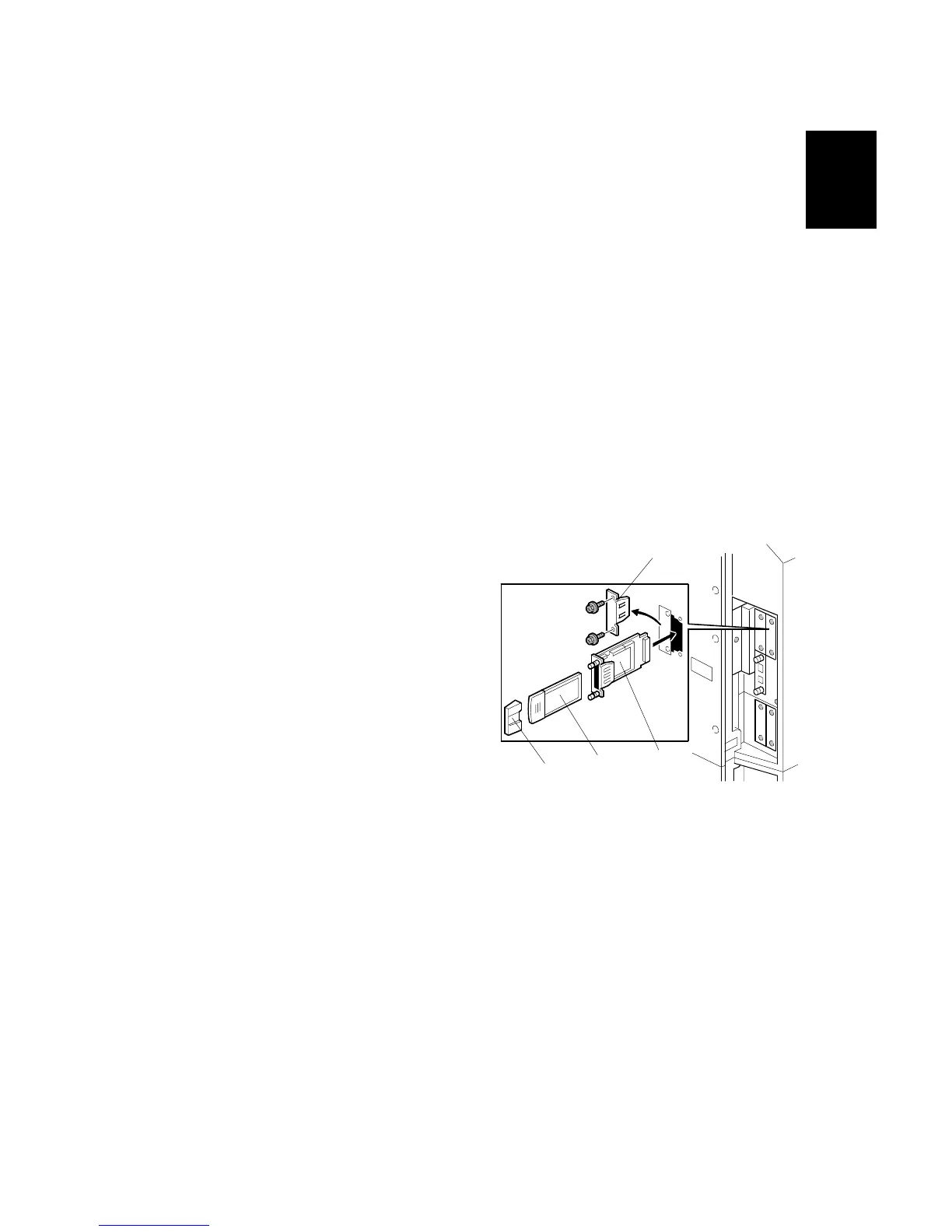

G813I101.WMF
[A]
[B]
[C]
[D]
