ADF 15 February 2006
6-14

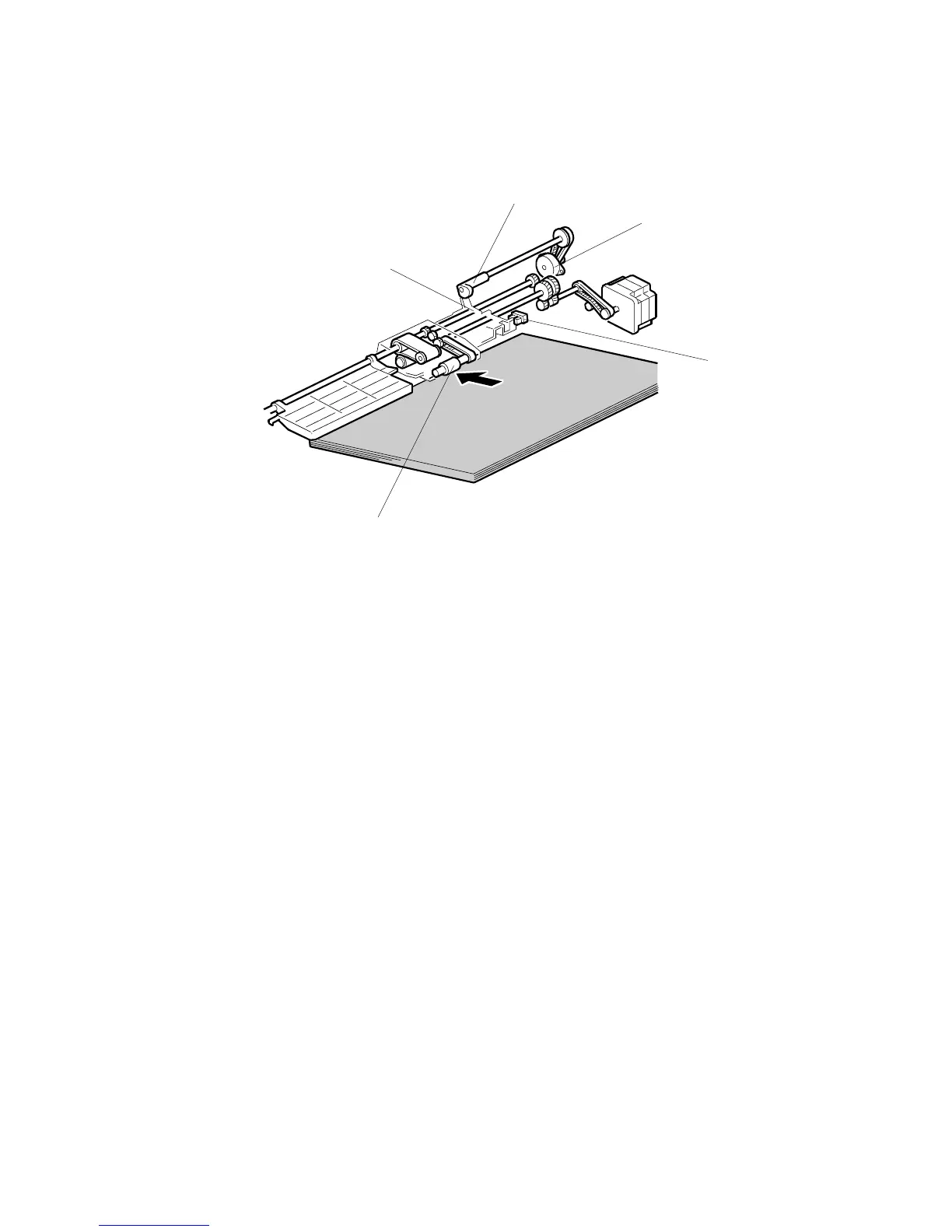

6.4.3 PICK-UP ROLLER LIFT
[A]: Pick-up roller lift motor
[B]: Cam
[C]: Pick-up roller release lever
[D]: Pick-up roller
[E]: Pick-up roller HP sensor
When there are no originals: The pick-up roller [D] remains up (this is the home
position).
When an original is placed on the tray: The original set sensor switches on, and
this switches motor [A] on. The cam [B] releases lever [C]. The lever rises and the
pick-up roller [D] drops onto the stack of paper. Then the pick-up roller feeds the
paper to the feed belt and separation roller.
B246D858.WMFF
[A]
[B]
[C]
[D]
[E]
