15 February 2006 MAIN MACHINE (B064 SERIES/B140 SERIES/B246 SERIES)
1-17
Installation

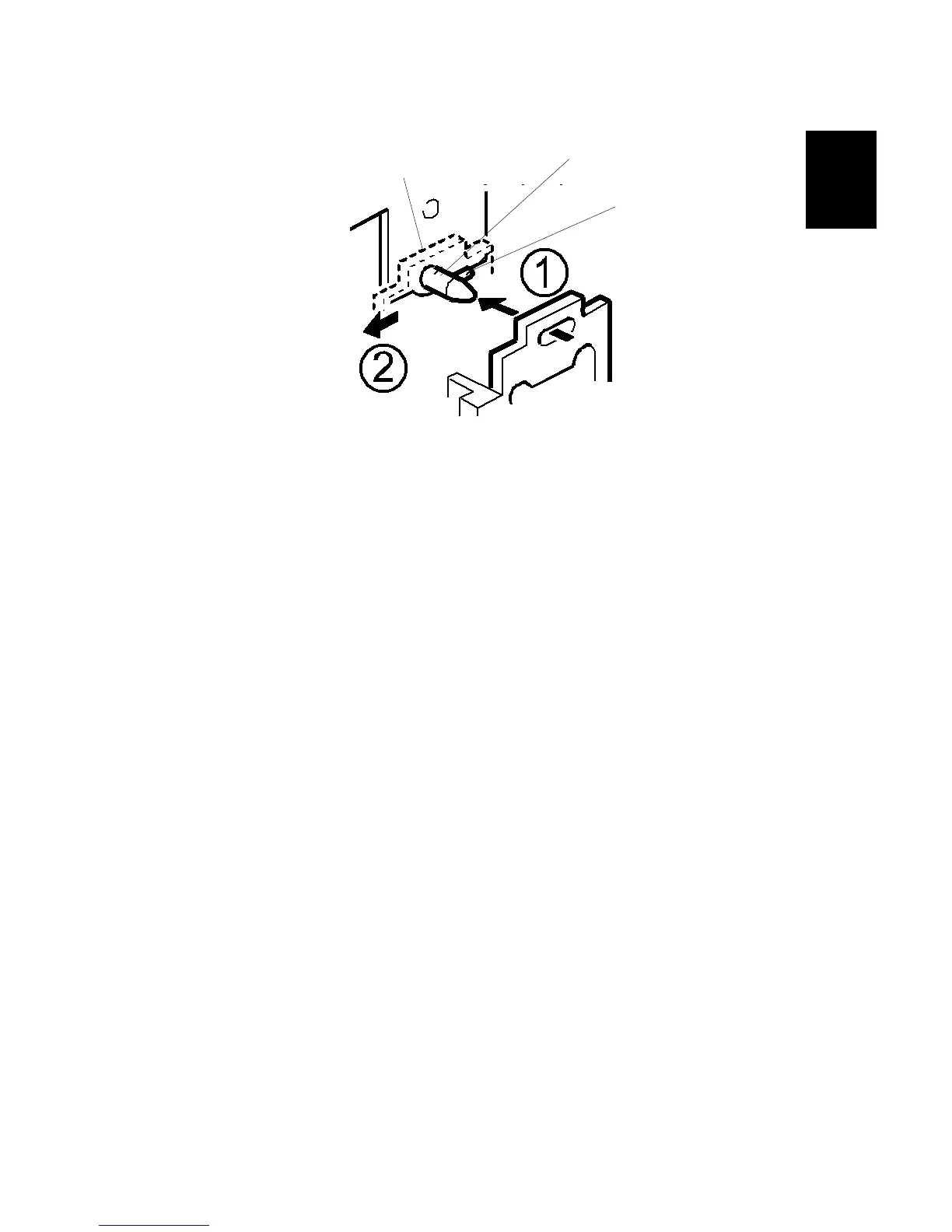

Re-installing the Development Unit
1. Push the development unit all the way to the right.
2. Continue to hold the unit to the right and push it into the machine.
3. Confirm that the pin [A] goes into the left side of the hole in the development
unit plate.
4. Push the development unit all the way in, so that the development unit plate
touches the mainframe plate [B].
5. Make sure you can see the small pin [C] in front of the plate.
Important: If you cannot move the development unit plate behind the small pin,
turn the front gear of the unit to the left and try again.
6. Push the development unit to the left until it touches the PCU.
7. Make sure the pipeline shutter is rotated down to the open position.
8. Reattach all removed parts.
9. Confirm that tab [D] is behind the stay and that the lower pin is inside the track.
B246I999.WMF
[A]
[B]
[C]
