DRUM UNIT 15 February 2006
3-40
3.6.7 QUENCHING LAMP
OPC drum (☛ 3.6.5)

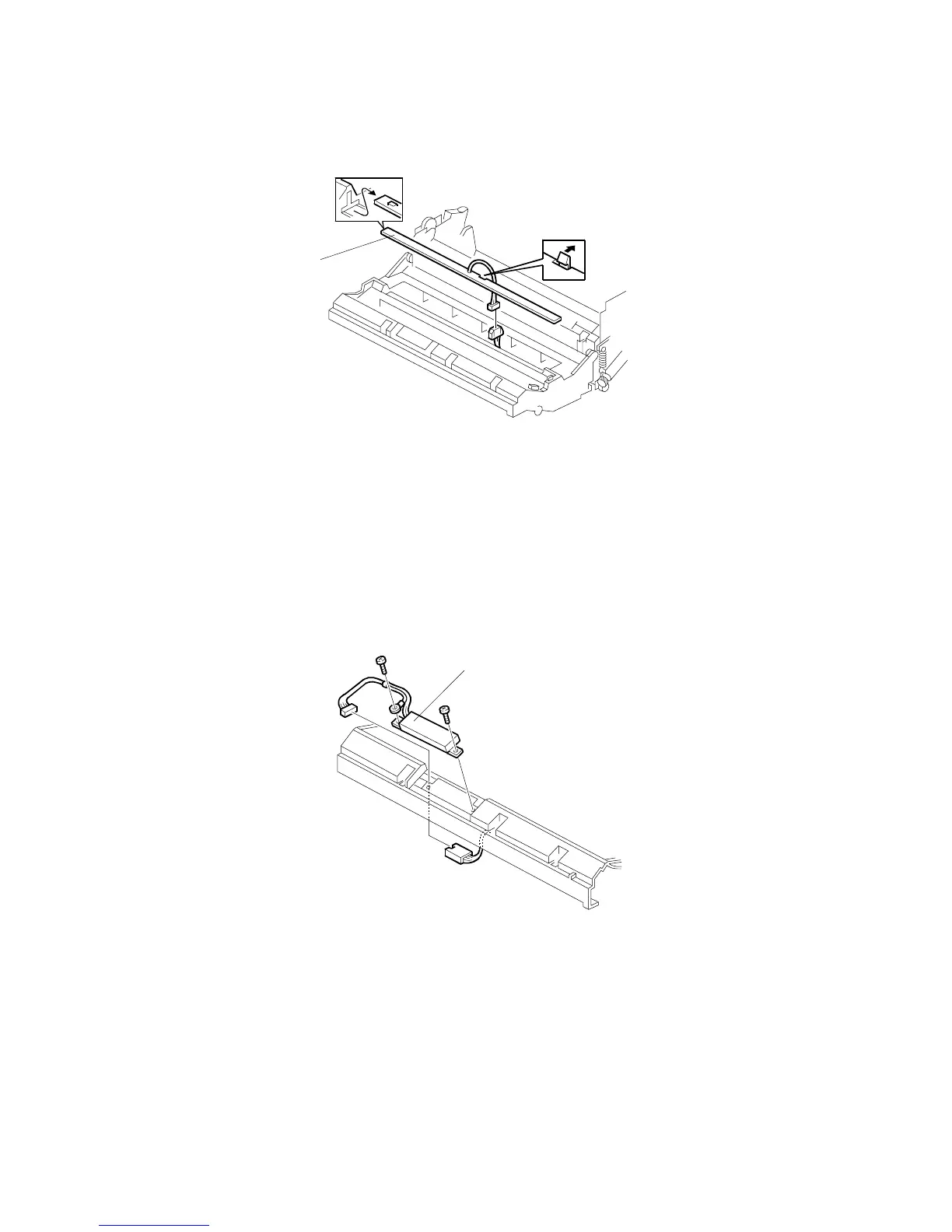

[A]: Quenching lamp ( x 1)
• At the center, push back the hook to release the quenching lamp.
NOTE: Use only a blower brush to clean the quenching lamp.
3.6.8 DRUM POTENTIAL SENSOR
OPC drum (☛ 3.6.5)
[A]: Drum potential sensor ( x 2, x 1)
NOTE: After replacing the drum potential sensor, do SP2962 (Adjustment of
Drum Conditions), only if SP3901 (Auto Process Control) is on).
