15 February 2006 2000/3000 SHEET FINISHERS (B700/B701)
1-75
Installation
1.14.2 INSTALLATION PROCEDURE
This section describes the common installation instructions for two peripheral
devices:
• B700 Booklet Finisher. Does punching, shifting, corner stapling, and booklet
(saddle-stitch) stapling.
• B701 Finisher. Does punching, shifting, and corner stapling but no booklet
(saddle-stitch) stapling unit.
Important!
• The 2000-Sheet Finisher B700 can be installed only on a B246 Series machine.
• The 2000-Sheet Finisher B701 can be installed only on a B246 Series machine.
NOTE: Differences in the installation procedures are noted as “B700” or “B701”.
Removing Tapes and Retainers
!WARNING!
Always turn the machine off and unplug the machine before doing any of
the following procedures.
1. Unpack the machine and remove all the wrapping.

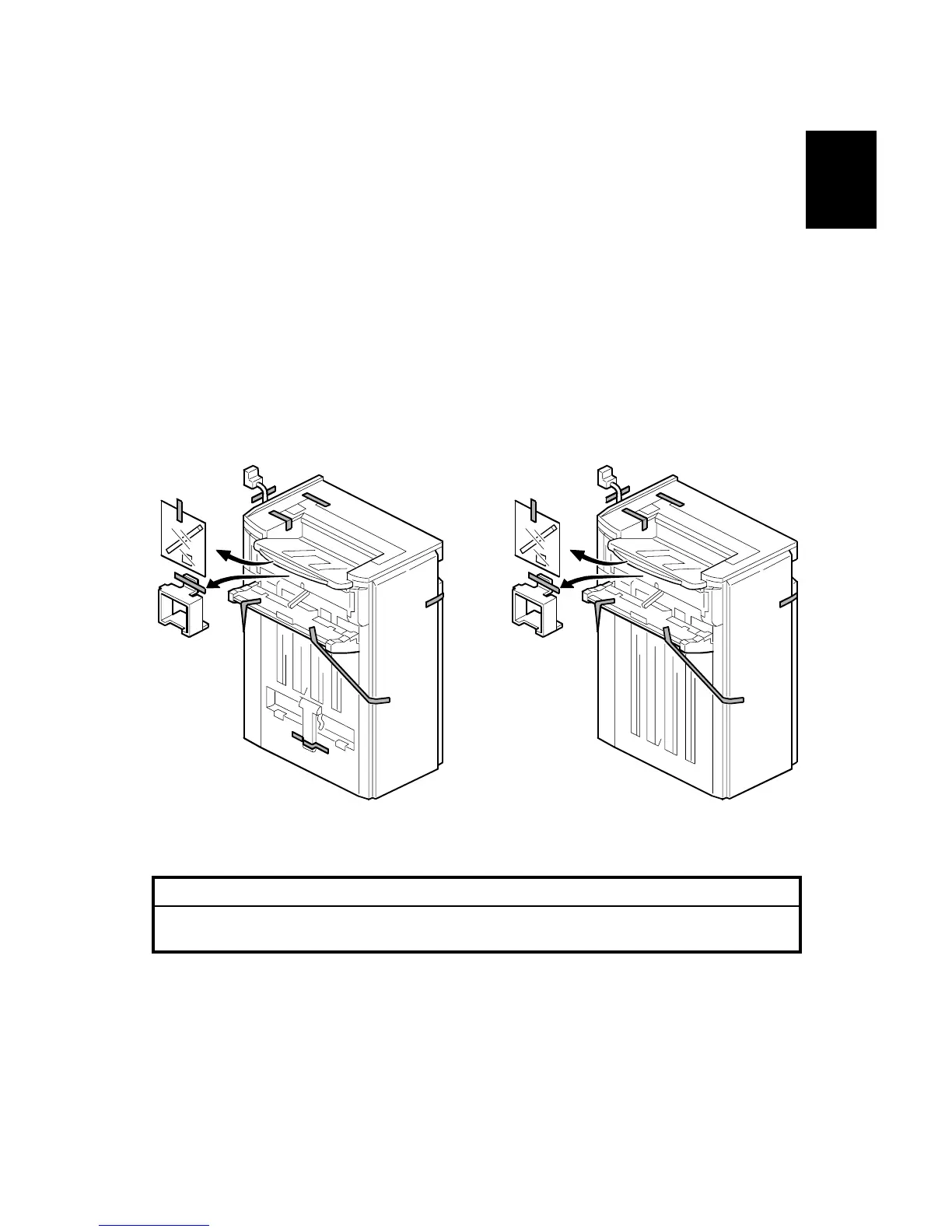

2. Remove all filament tape and shipping retainers from the finisher.
B700I102.WMFMF
B701I102.WMFMF
B700 B701
To Next Page
