Ricoh MT-C1 - Paper Feed; Paper Tray Removal

15 February 2006 PAPER FEED
3-95
Replacement
Adjustment
3.11 PAPER FEED
3.11.1 PAPER TRAY REMOVAL
1. Open the front door.

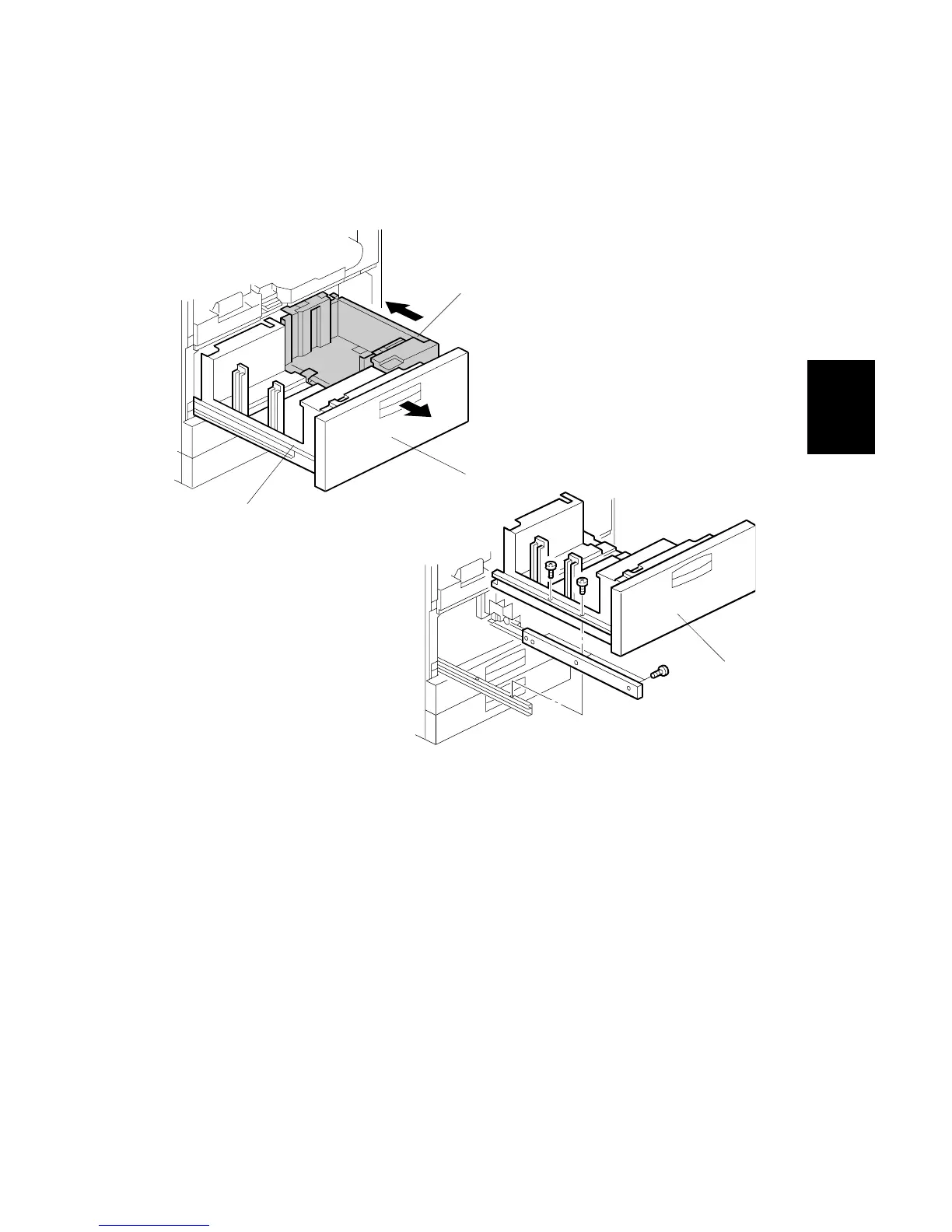

2. Pull out the tandem tray drawer [A] completely to separate the left [B] and right
[C] sides of the tandem tray.
3. Remove the left tandem tray [D] ( x 5).
B246R1050.WMF
B246R1051.WMF
[A]
[B]
[C]
[D]
