15 February 2006 PAPER FEED
3-115
Replacement
Adjustment

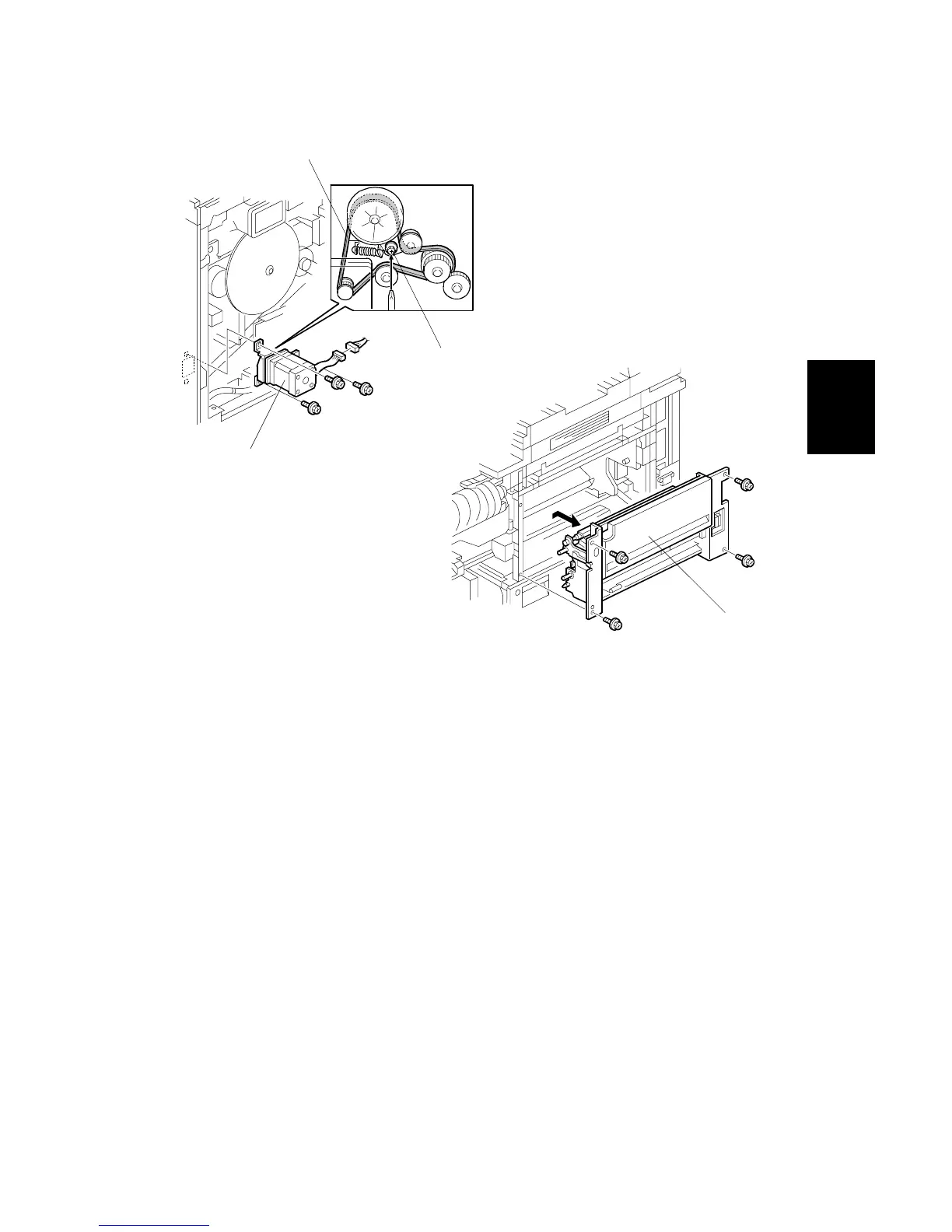

8. Remove the by-pass feed motor [A] ( x 3, x 1).
• At re-installation, if the tension of the belt [B] is slack, loosen the screw on the
tension bracket [C], move the screw to put more tension on the belt, then
tighten the screw at the new position.
9. Remove the by-pass unit [D] ( x 4).
When removing and installing the by-pass unit:
• Make sure that the unit does not catch on any harnesses.
• On re-installation, make sure that no harnesses are pinched between the unit
and the machine frame.
• You must re-install the by-pass unit with the duplex unit open.
B246R1097.WMF
B246R1098.WMF
[A]
[B]
[C]
[D]
