Ricoh MT-C1 - Page 139

15 February 2006 KEY CARD BRACKET (B498), KEY COUNTER BRACKET (B452)
1-117
Installation

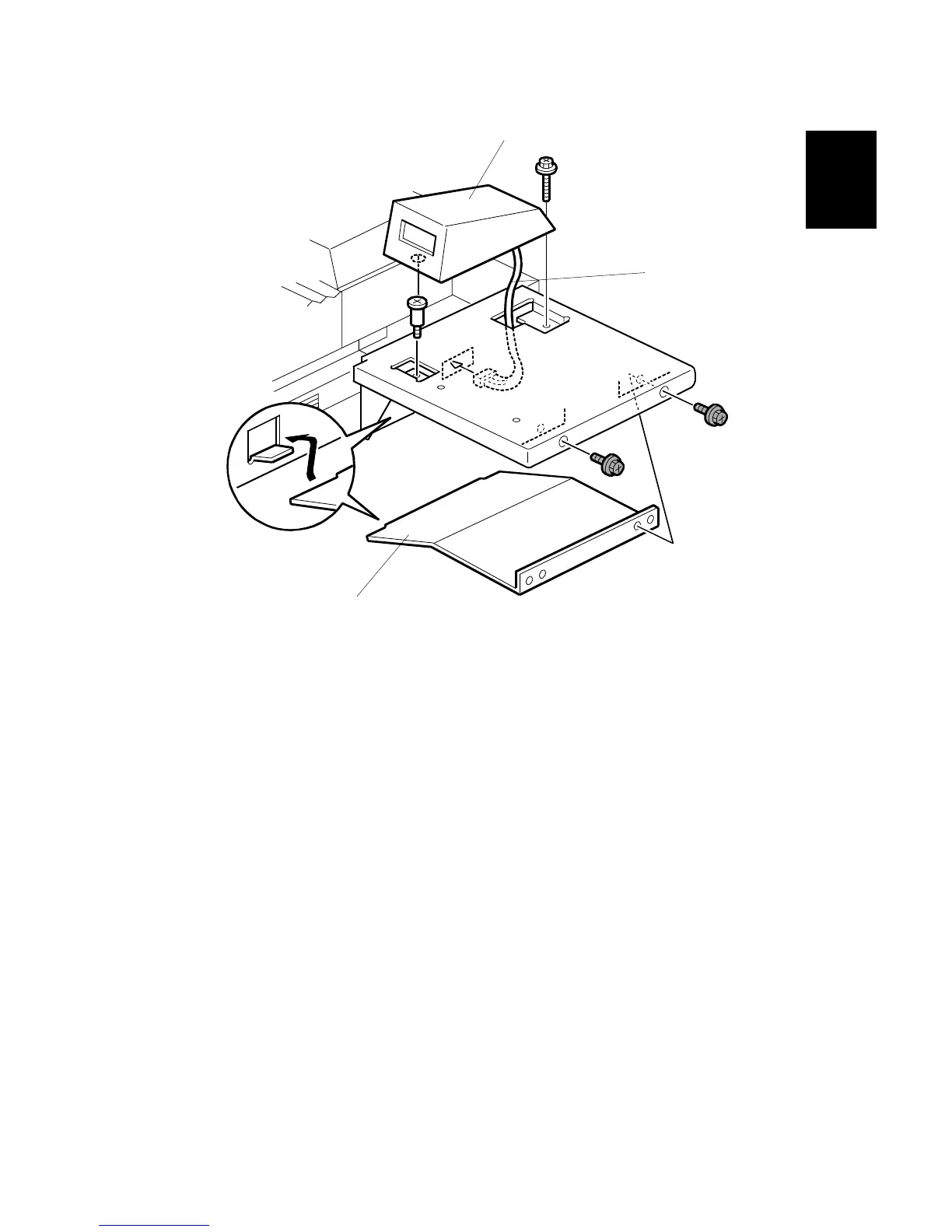

6. Attach the key counter bracket [A] (" x 2).
7. Attach the harness [B] to the key counter bracket and the machine (# x 1).
8. Attach the bracket support [C] to the side of the copier (" x 2).
B498I004.WMF
[C]
[B]
[A]
