OUTPUT JOGGER UNIT (B703) 15 February 2006
1-104
5. While you hold the jogger unit with the connector on the left, put the hooks of
the frame of the jogger unit [A] into the holes in the left and right side of the
finisher frame.
6. Fasten connector [B] to the socket (# x 1).
7. Attach the jogger unit to the finisher (" x 2).
8. Reattach the jogger unit cover [C] to the jogger unit (" x 2).

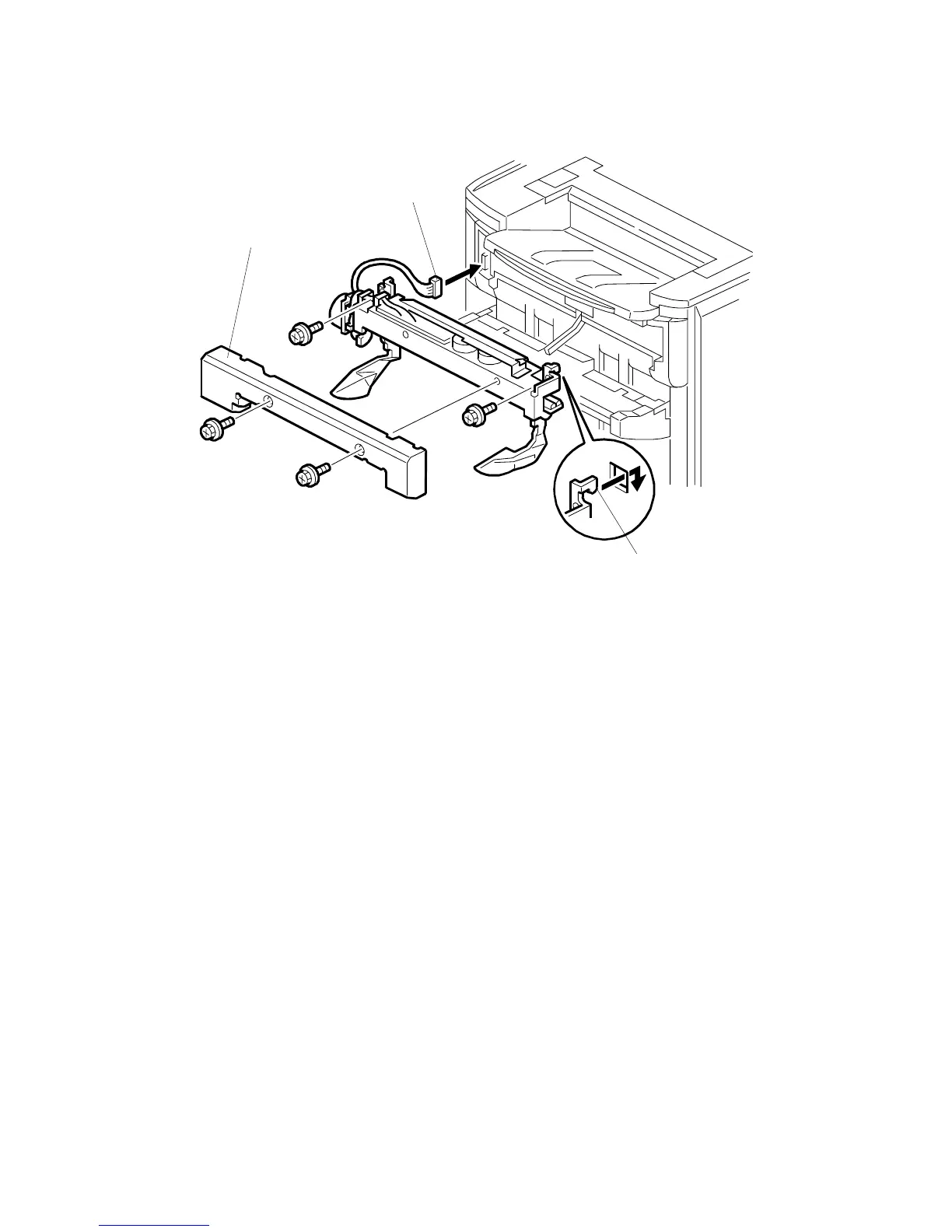

B703I104.WMF
[A]
[B]
[C]
