Ricoh MT-C1 User Manual

15 February 2006 COPY TRAY (B756)
1-111
Installation
2. Attach the paper height sensor [A] and harness clamp [B] to the sensor bracket
[C].
3. Attach the sensor bracket and actuator arm bracket [D] to the copier (" x 3).
4. Attach the sensor harness [E] (# x 1, $ x 4).
5. Attach the actuator [F] to the arms of the actuator arm bracket.

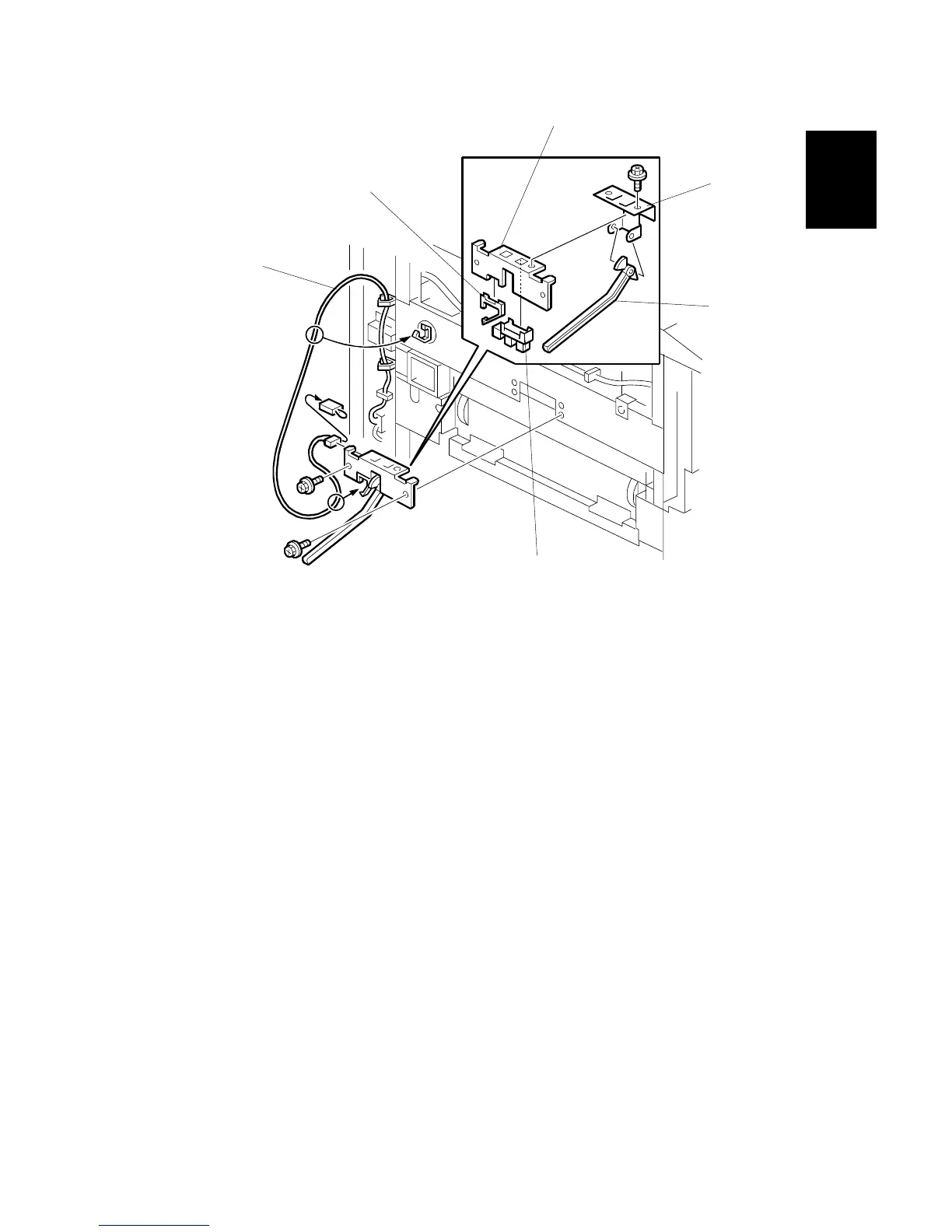

B756I003.WMF
[A]
[B]
[C]
[D]
[E]
[F]
