15 February 2006 MAIN MACHINE (B064 SERIES/B140 SERIES/B246 SERIES)
1-13
Installation

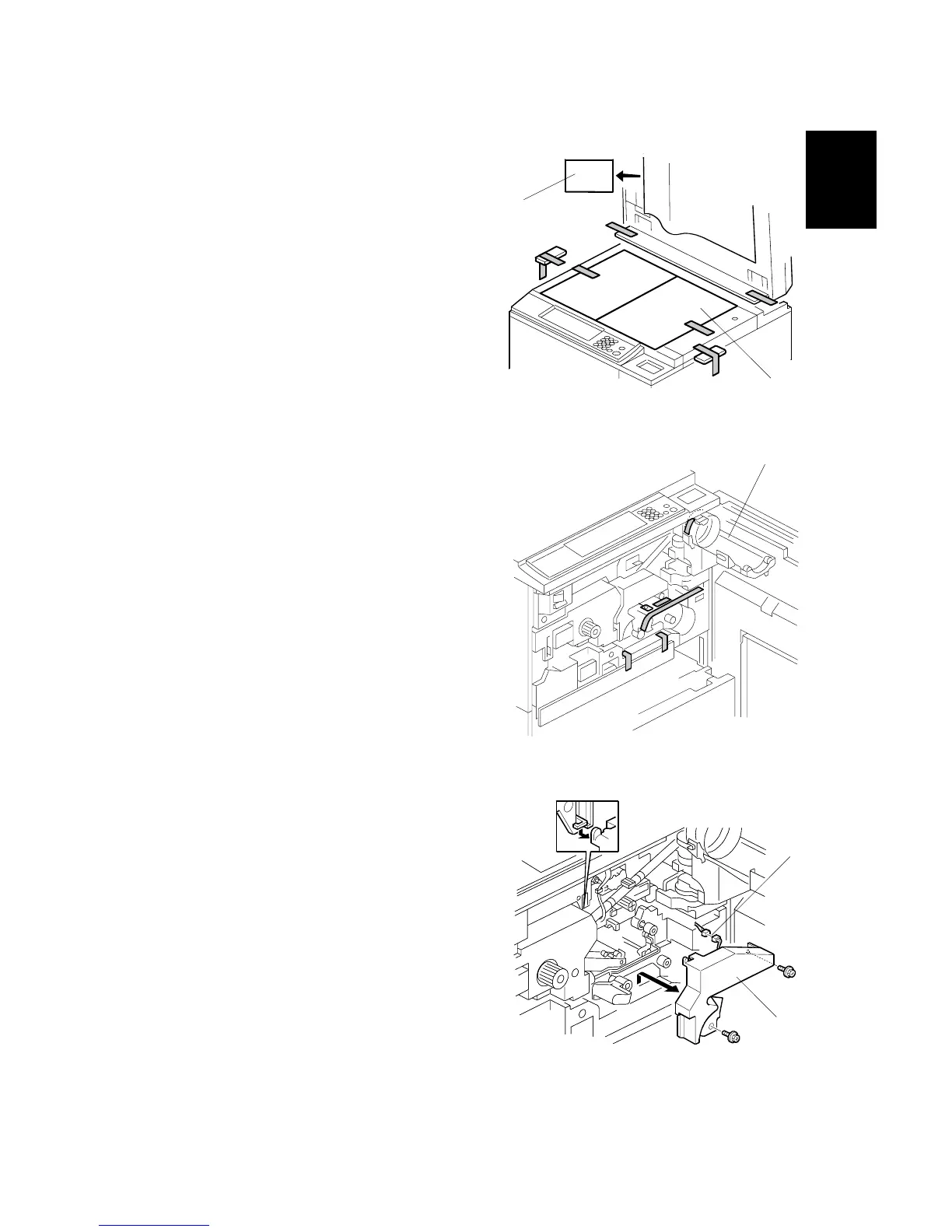

6. Raise the ADF and remove all the
tape and shipping retainers around the
exposure glass [A] and operation
panel.
7. Remove the shipping retaining sheet
[B] under the white pad.
8. Open the front door, open the toner
bottle holder [C], then remove all tape
and shipping retainers.
9. Remove the PCU inner cover [D] (" x
2) and disconnect the fan motor [E]
(# x 1).
B064I005.WMF
B064I007.WMF
B064I008.WMF
[B]
[C]
[D]
[E]
[A]
To Next Page
