15 February 2006 MAIN MACHINE (B064 SERIES/B140 SERIES/B246 SERIES)
1-21
Installation

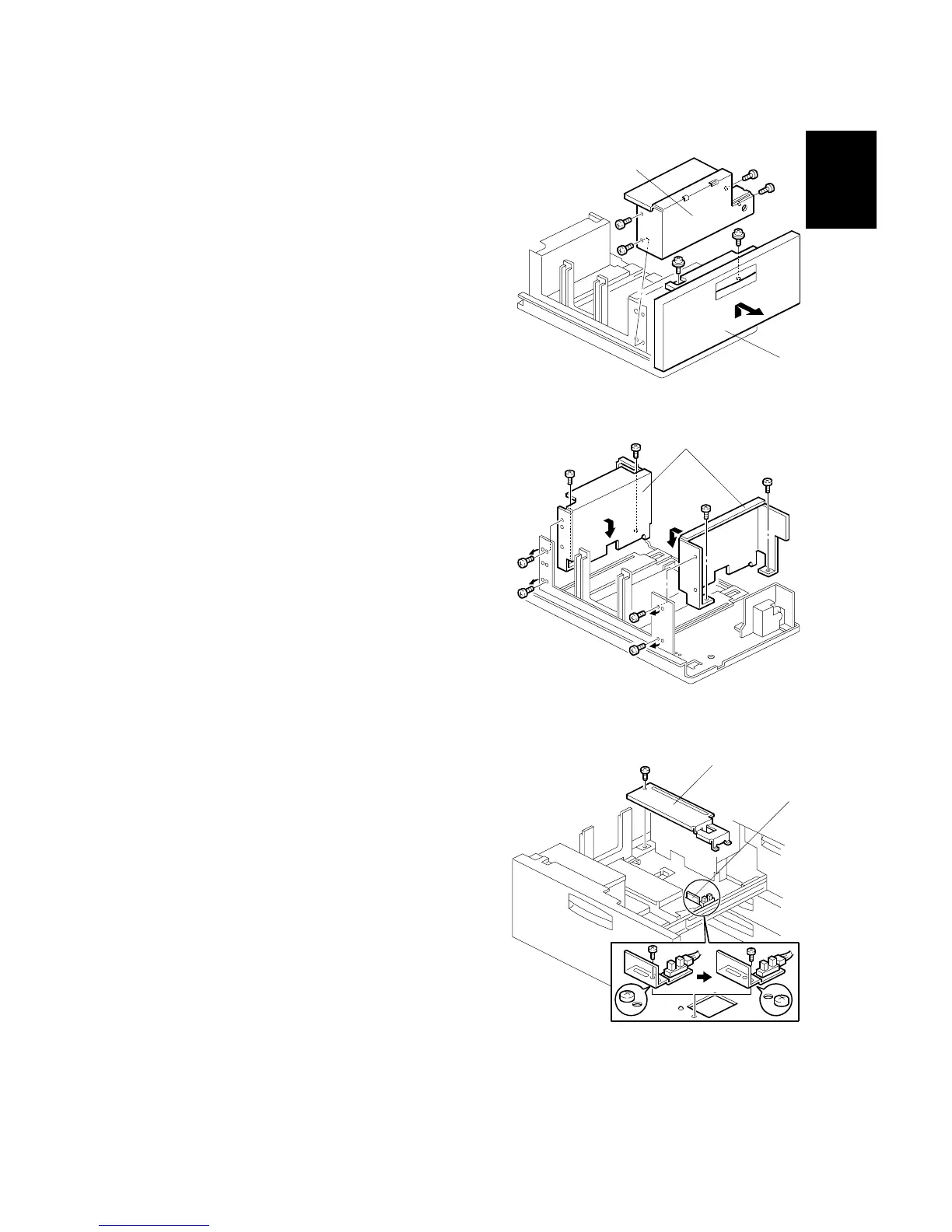

6. Remove the tray cover [A] (" x 2).
7. Remove the motor cover [B] (" x 4).
8. Re-position the side fences [C] (" x 8).
The outer slot position is used when
loading A4 size paper.
9. Re-install the motor cover and the tray
cover.
10. Remove the rear bottom plate [D]
(" x 1).
11. Re-position the return position sensor
bracket [E] (" x 1). To use the paper
tray for A4 size, put the screw in the
left hole as shown. (For LT size, the
screw should be placed on the right.)
12. Re-install the rear bottom plate.
13. Change the paper size using SP5959-
001 (Paper Size – Tray 1). For details,
see SP5959 in section “5. Service
Tables”.
B064I566.WMF
B064I523.WMF
B064I024.WMF
[D]
[E]
[A]
[C]
[B]
