15 February 2006 LCT (B473)
1-29
Installation

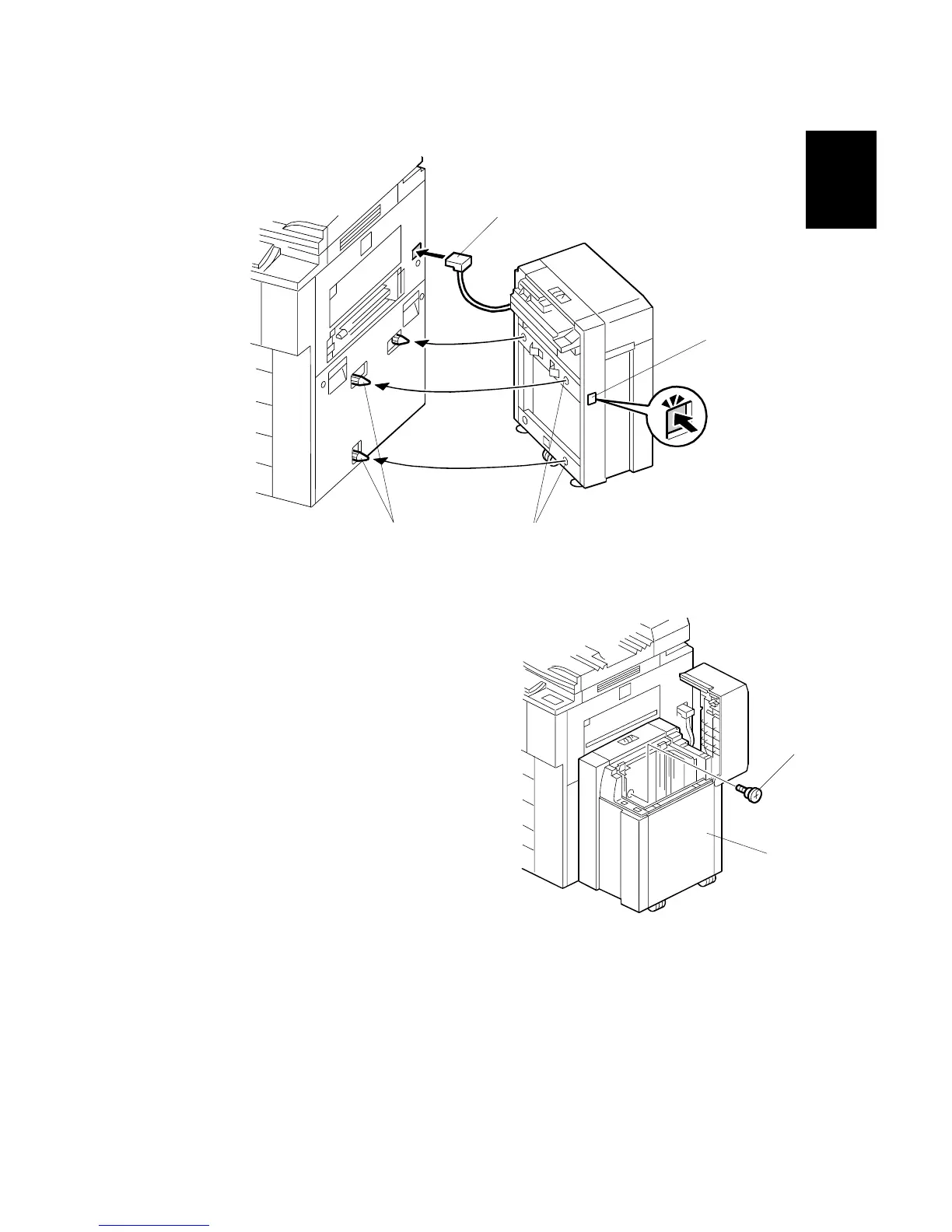

2. Align the holes on the side of the LCT
[A] with the docking pins on the side of
the machine [B], then slowly push the
LCT onto the pins.
NOTE: The release button [C] is used
to unlock the LCT so it can be
disconnected from the machine.
3. Connect the plug [D] of the LCT power
cord to the side of the machine.
4. Insert the flat-head shoulder screw [E]
into the hole and fasten it to lock the
release lever in place.
For easier access to the hole for the
screw [E], you can remove the right
panel [F] (" x 2).
5. Switch the machine on and execute
SP5959 005 (Paper Size – Tray 4
(LCT)) to select the paper size. For
details, see SP5959 in section “5.
Service Tables.”
B473I005.WMF
B473I006.WMF
[E]
[F]
[D]
[C]
[B] [A]
To Next Page
