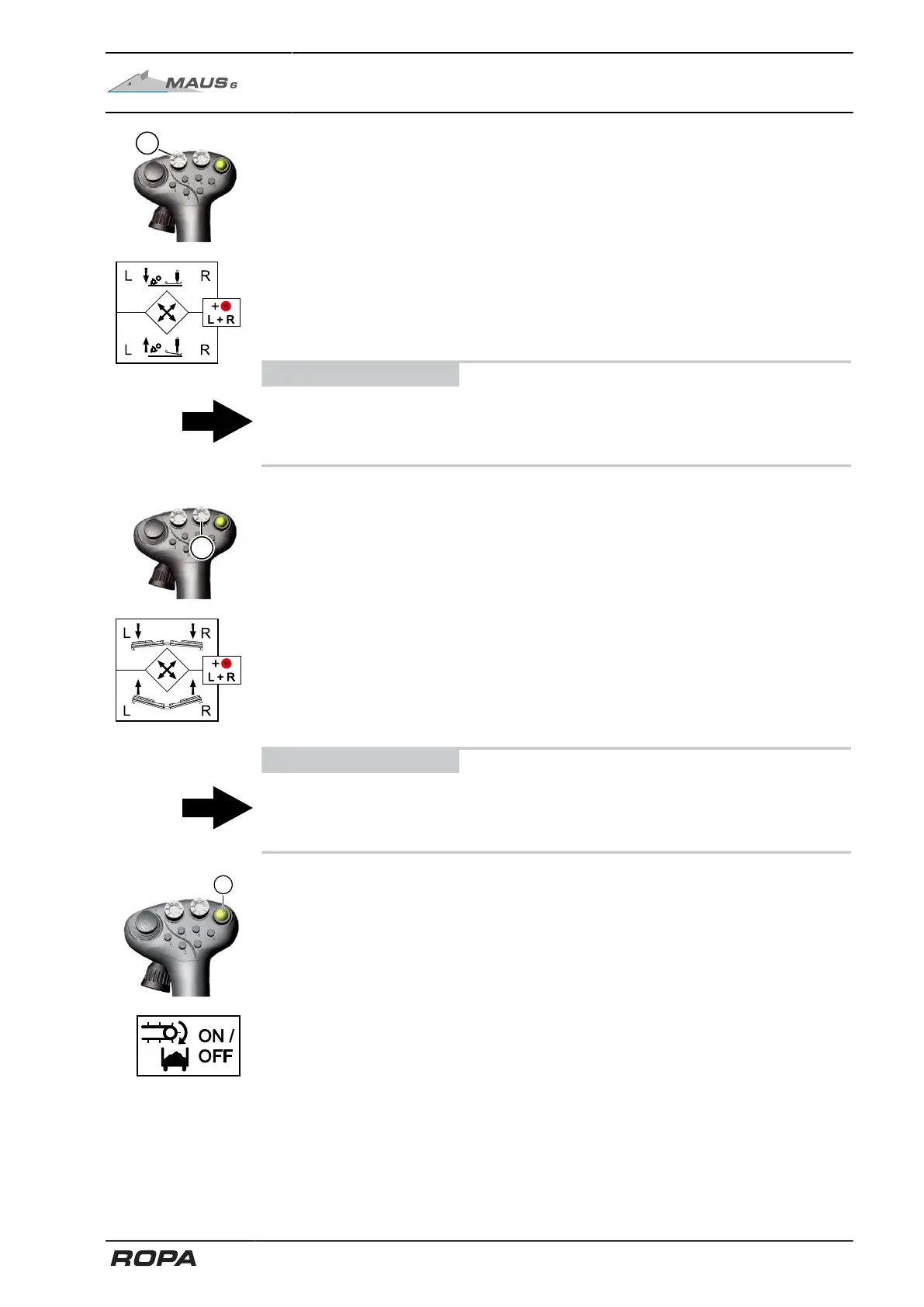

Operation
Right joystick
X-Y button (4) Support feet
FRONT LEFT Raise supporting foot left
FRONT RIGHT Raise supporting foot right
Pickup rollers work deeper in the ground
REAR LEFT Lower supporting foot left
REAR RIGHT Lower supporting foot right
Pickup rollers work more shallow in the ground
ADVICE
If the multi-key (11) is pressed at the same time as the X-Y key (4), both support feet
are always adjusted simultaneously, regardless of which side the X-Y key is moved
to.
X-Y key (5) fold pickup
FRONT LEFT Fold out pickup side section left
FRONT RIGHT Fold out pickup side section right
REAR LEFT Fold in pickup side section left
REAR RIGHT Fold in pickup side section right
With this, you also change the relief pressure of the pickup side sections.
ADVICE
If the multi-key (11) is pressed at the same time as the X-Y key (5), both pickup
side parts are always folded simultaneously, regardless of which side the X-Y key is
moved to.
Key (6) machine drive
PRESS KEY SHORTLY Machine drive On/Off
PRESS AND HOLD KEY Reload
