Operation

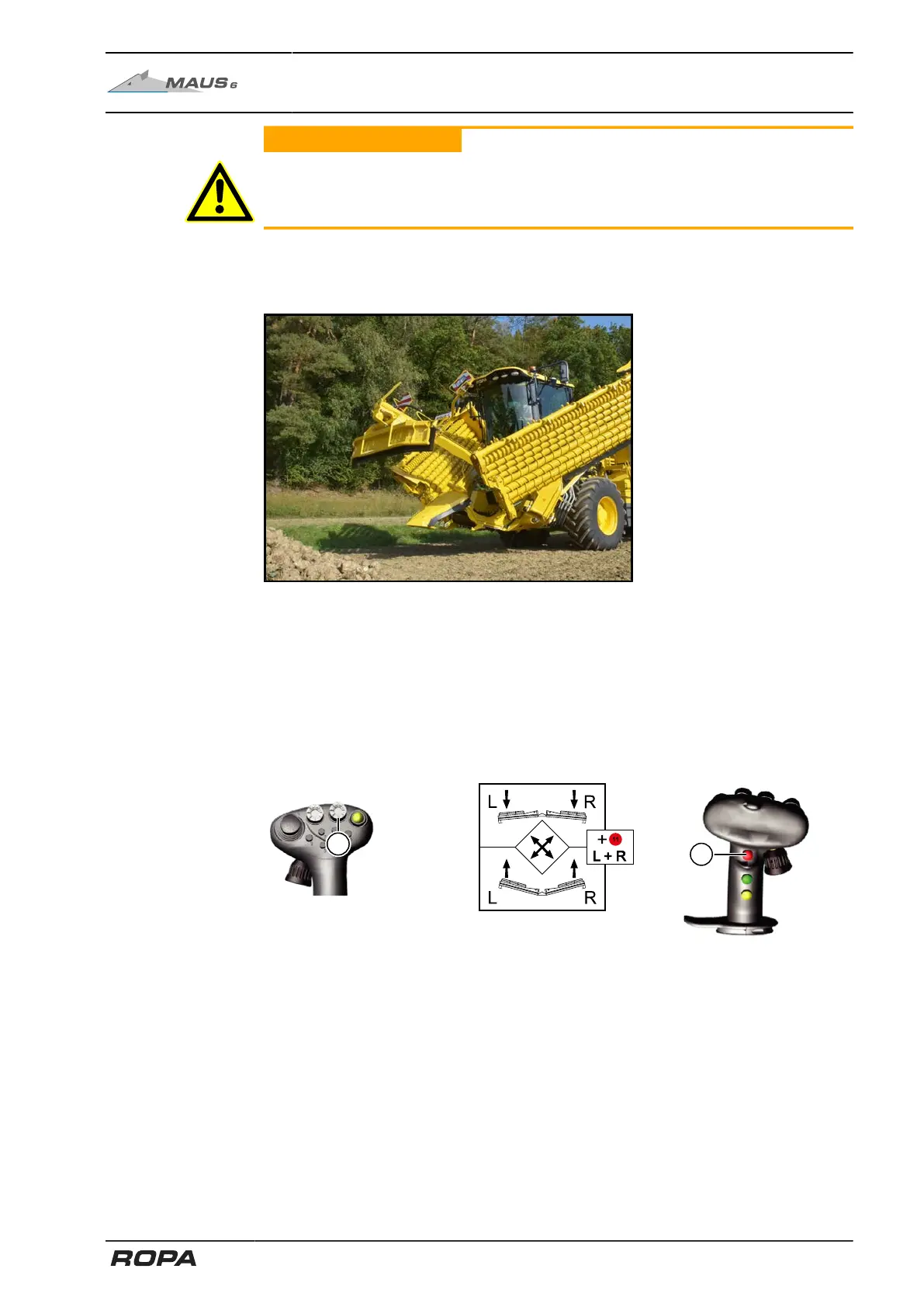

Folding the machine out/in
WARNING
Hazard of extremely severe injuries.
– Make sure, that nobody stands in the hazard zones when the machine is started.
For folding out perform the following actions consecutively:
– Extend the telescopic mechanism of the pile pickup slightly and raise the pile
pickup as high as possible. (See Page 281)
– Fold the both pickup side sections out.
To do it, push the X-Y key (5)
FORWARD LEFT Fold out pickup side section left
FORWARD RIGHT Fold out pickup side section right
To fold it out faster, press the multi-key (11) and keep it pressed. If you then slide the
X-Y key (5) forward left or forward right, then both pickup side sections are simulta-
neously folded out.
