Maintenance and Service
Hydraulic system

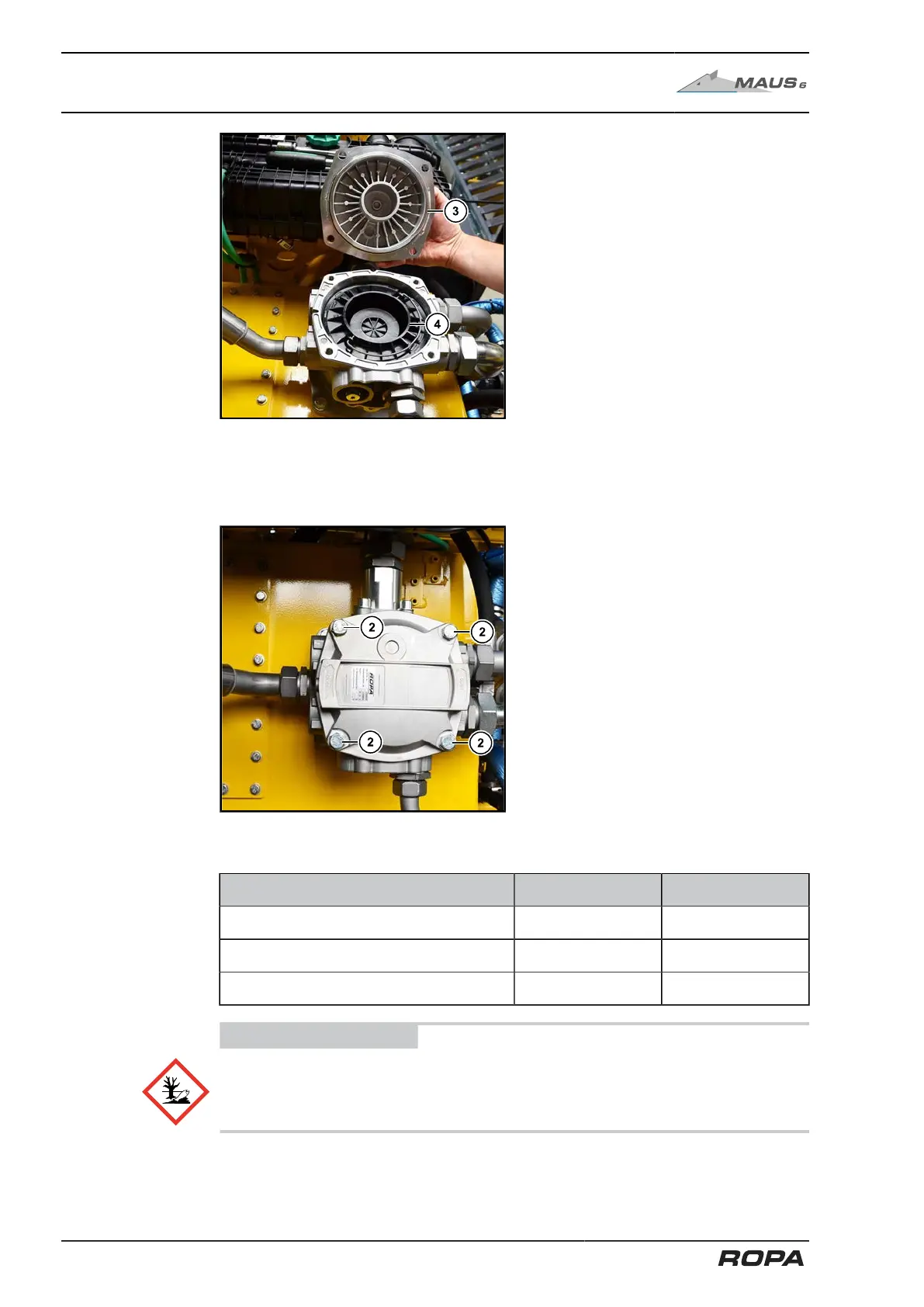

(3) Lid of suction return filter
(4) Separating plate with metal
bracket
Attach the separating plate with the pro-
tective sieve and metal bracket (4) to the
filter element from above. Then swing
down the metal bracket.
(2) Fixing screw M12 (SW19)
Put the cover (3) back on and retighten
the fixing screws (2).
The tightening torque for the fixing
screws is 40 Nm.
Designation ROPA item no. unit count
Suction return filter element 270088600 1
O-ring 412060800 2
Specialized tool 018139800 1
ADVICE
Filter element must be disposed of in compliance with regional environmental protec-
tion regulations!
382 / 546
