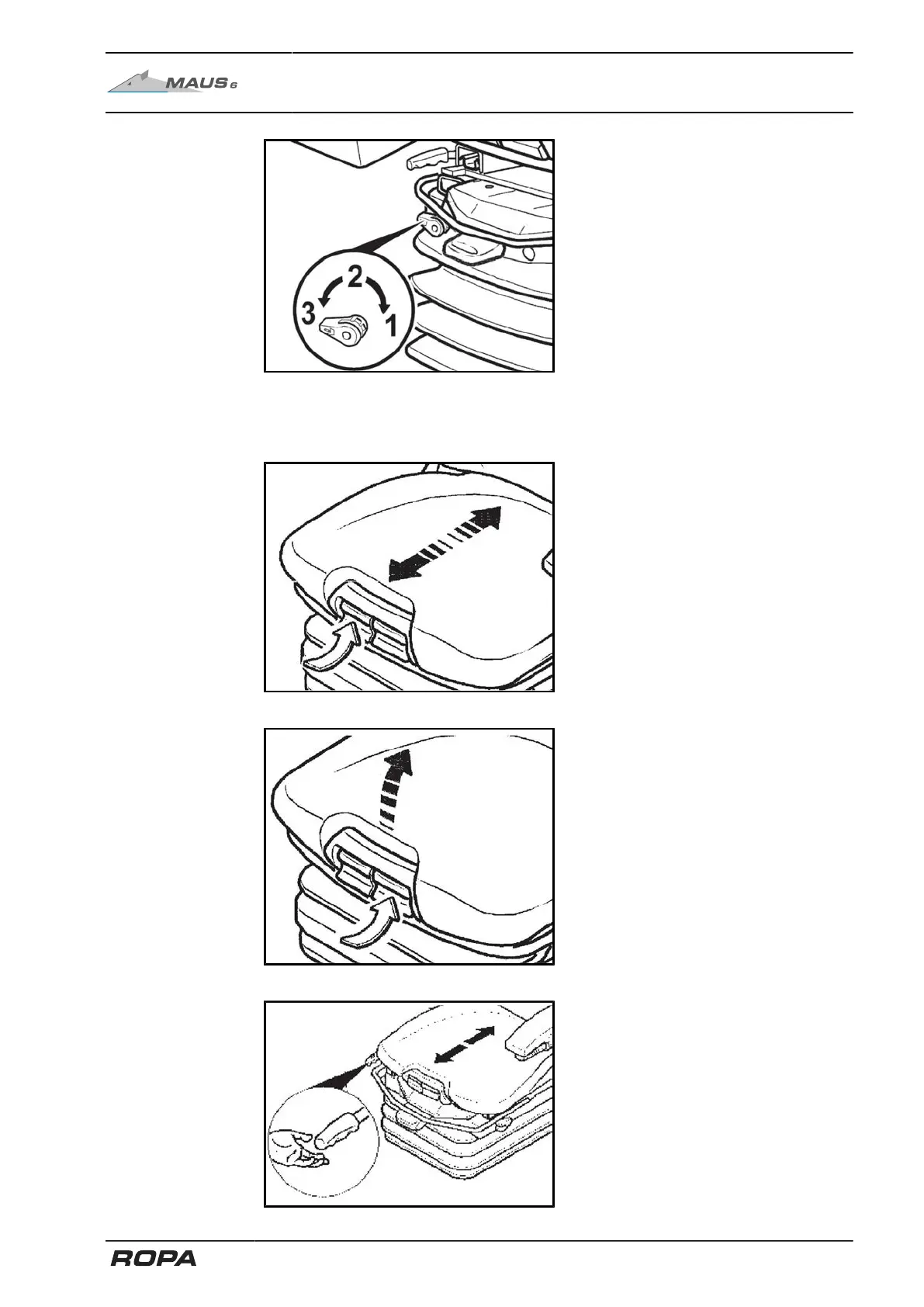

Operating Components
Driver's seat
Shock absorption
The damping of the seat can be adjusted
to match the characteristics of the road or
field surface.
The comfort of the suspension can be
adjusted individually. Rotate the lever to
the desired setting and release.
Position 1 = soft
Position 2 = medium
Position 3 = hard
The manufacturer recommends position 2
as the basic setting for drivers of average
weight.
Seat depth adjustment
The depth of the seat pan can be
adjusted individually. To adjust the depth
of the seat cushion, lift the right handle
(see arrow). You can reach the desired
seating position by moving the seat cush-
ion forwards or backwards.
Seat pan angle adjustment
The angle of the seat pan can be individu-
ally adjusted.
To adjust the angle of the seat pan, lift
the left handle (see arrow). By exerting
pressure on or off the seat pan it can be
moved to the desired angle position.
Longitudinal adjustment without oper-
ating console
Lateral adjustment of the seat is released
by pressing the locking lever upward.
The locking lever must latch into the
desired position. It should not be possi-
ble to move the driver’s seat into another
position when it is locked.
