Rovema CMK Operator’s Manual
Section 4: Parts and Functions
200246 CMK Operators Manual (02/06/2006) 4-28
Bag Transfer Stations
Bags leave the VPK Baggers and enter the bag transfer stations on conveyors.
The bags run under conditioning rollers to smooth out the bags. There are
several adjustment locations to accommodate different sizes of bags. There are
also scales and indicators that may be used to record the settings for future
applications. There is also an emergency stop button located on the side of each
bag transfer station for emergency situations.

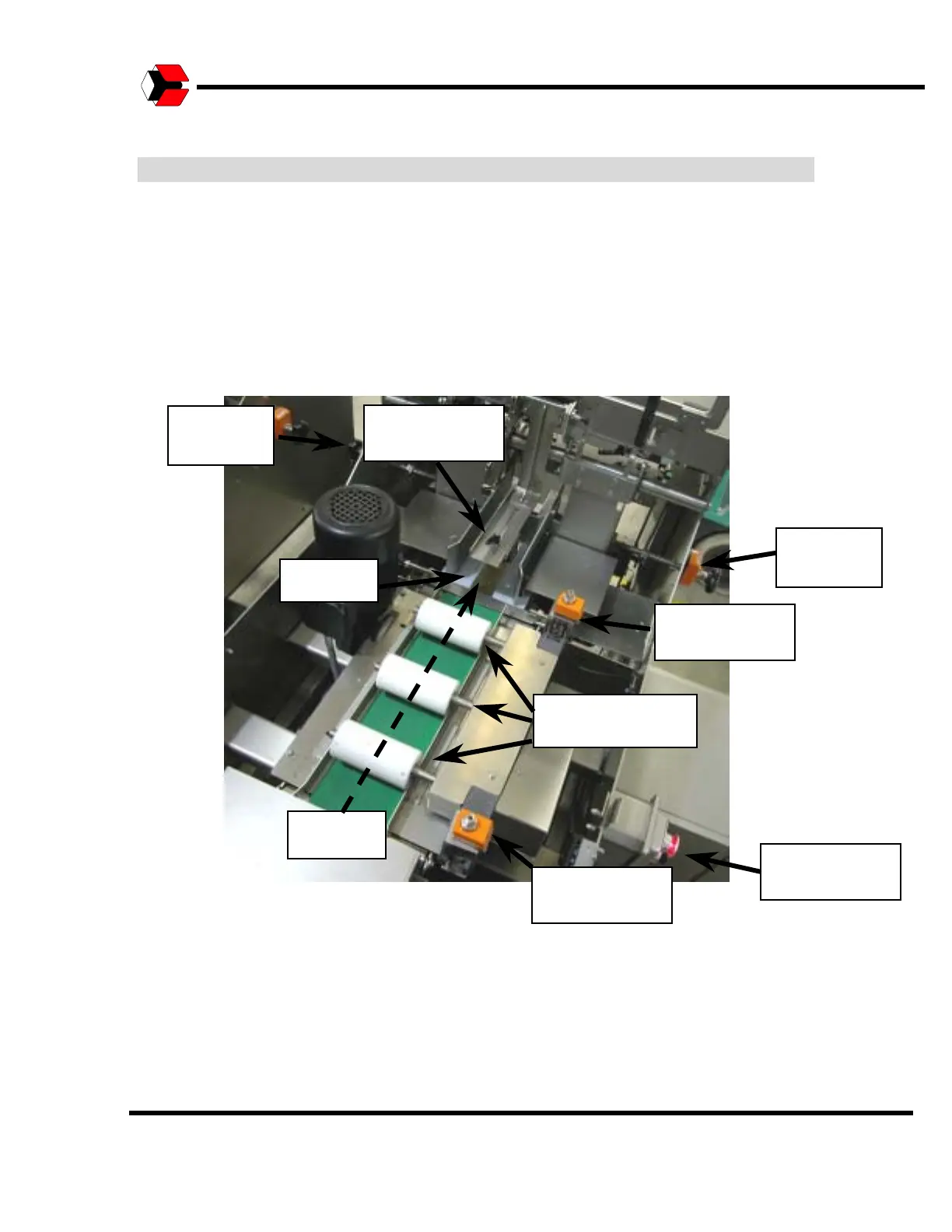

Figure 4.29
Shows the flow of bags entering the Bag Transfer Station.
Roller Height
Adjustment
Flow of
Ba
g
s
Bag Conditioning
Rollers
Roller Height
Adjustment
Emergency Stop
Button
Bag Length
Adjustment
Stage 1
Bag Width
Adjustment
Bag Width
Adjustment
