Rovema CMK Operator’s Manual
Section 4: Parts and Functions
200246 CMK Operators Manual (02/06/2006) 4-29
Bag Transfer Stations
The bag transfer station is divided into 4 stages. The actions of each stage are
controlled on the Bag Transfers parameters screens of the HMI. Each stage has
a drop gate that opens and closes dropping the bag (or bags) to the next stage.
The final drop, into the bucket conveyor, will have a stack of bags containing the
number of bags to be placed into each carton.

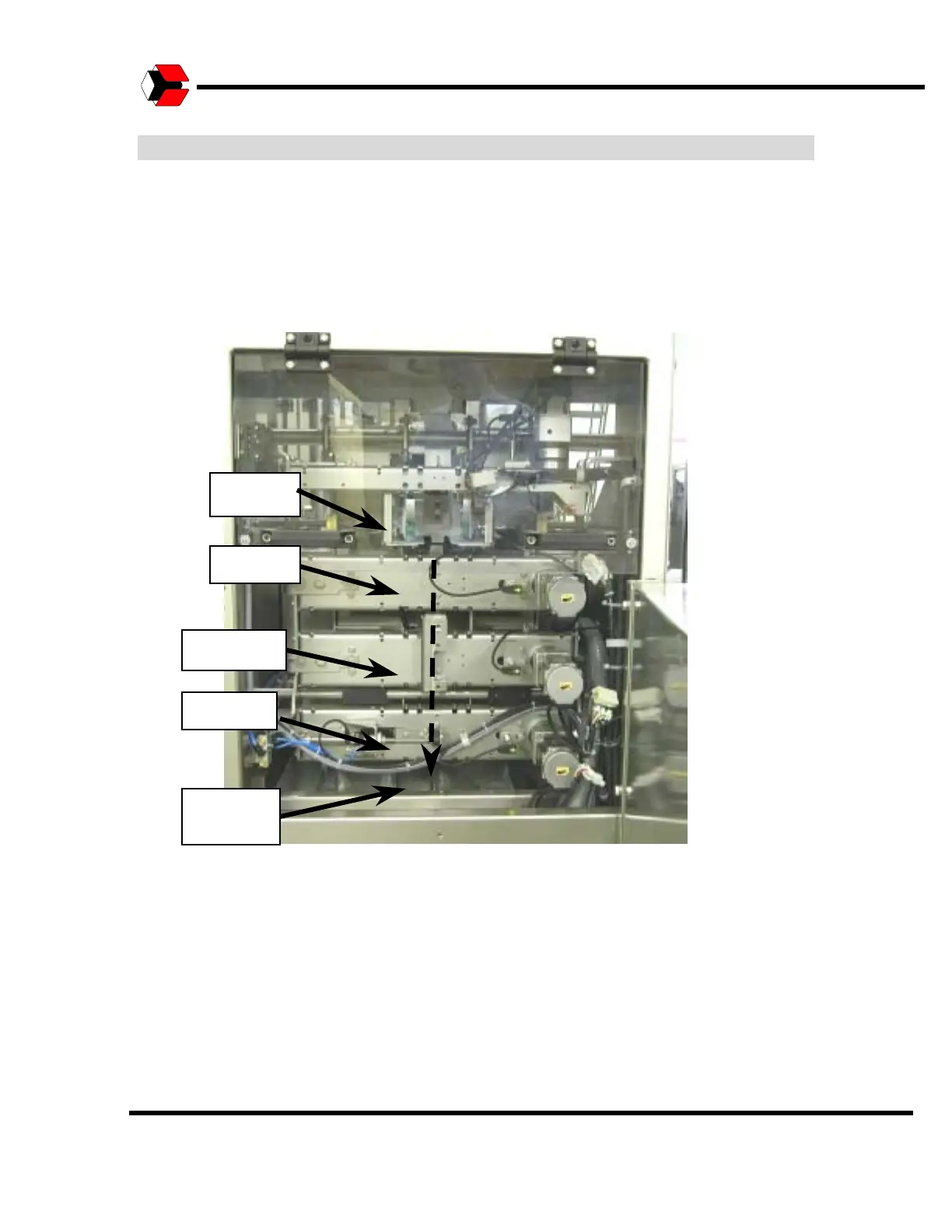

Figure 4.30
Shows the end view of a Bag Transfer Station.
Stage 1
Stage 2
Stage 3
Stage 4
Bucket
Conveyor
