SATO CT4-LX User Manual

159
If there are multiple sheets between the print head and paper end sensor when a paper end error
is detected, the paper end error occurs after feeding the media that is remaining.
A paper end error also occurs if the position of the last edge that was detected reaches the print
head position while the remaining media is being fed.
A paper end error occurs while printing, depending on the length of the labels, but reprinting is
done after the error is cleared.

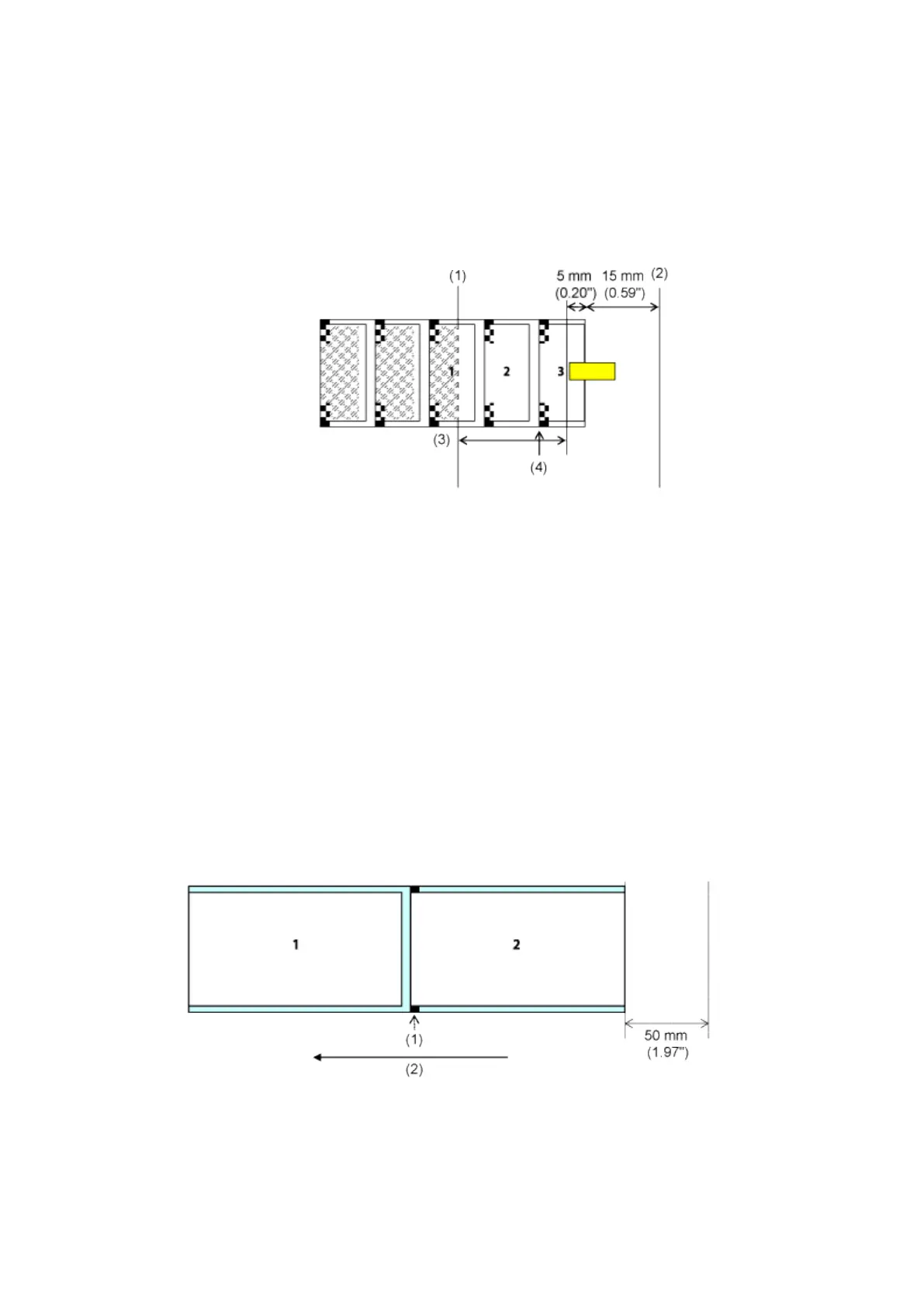

(1) Print head position
(2) Paper end sensor
(3) Amount of media remaining
(4) Position of last edge detected is saved
For [non-Adhesive Tag] (Fan-fold Media)
• A paper end error occurs when media is fed 50 mm (1.97") after 2 is printed.
• If an error occurs while printing, then 2 is reprinted after the error is cleared. If printing has
finished when an error occurs, then 2 is not reprinted. (Also, if printing finishes while feeding the
50 mm (1.97"), then reprinting is not done.)
• In cutter mode, cutting is not done if a paper end error occurs.
• This cannot be used in dispenser mode or linerless mode.
(1) I-mark
(2) Feed direction

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
