SATO CT4-LX - Dispenser Mode and Backfeed Before Printing (Head Check Disabled)

338

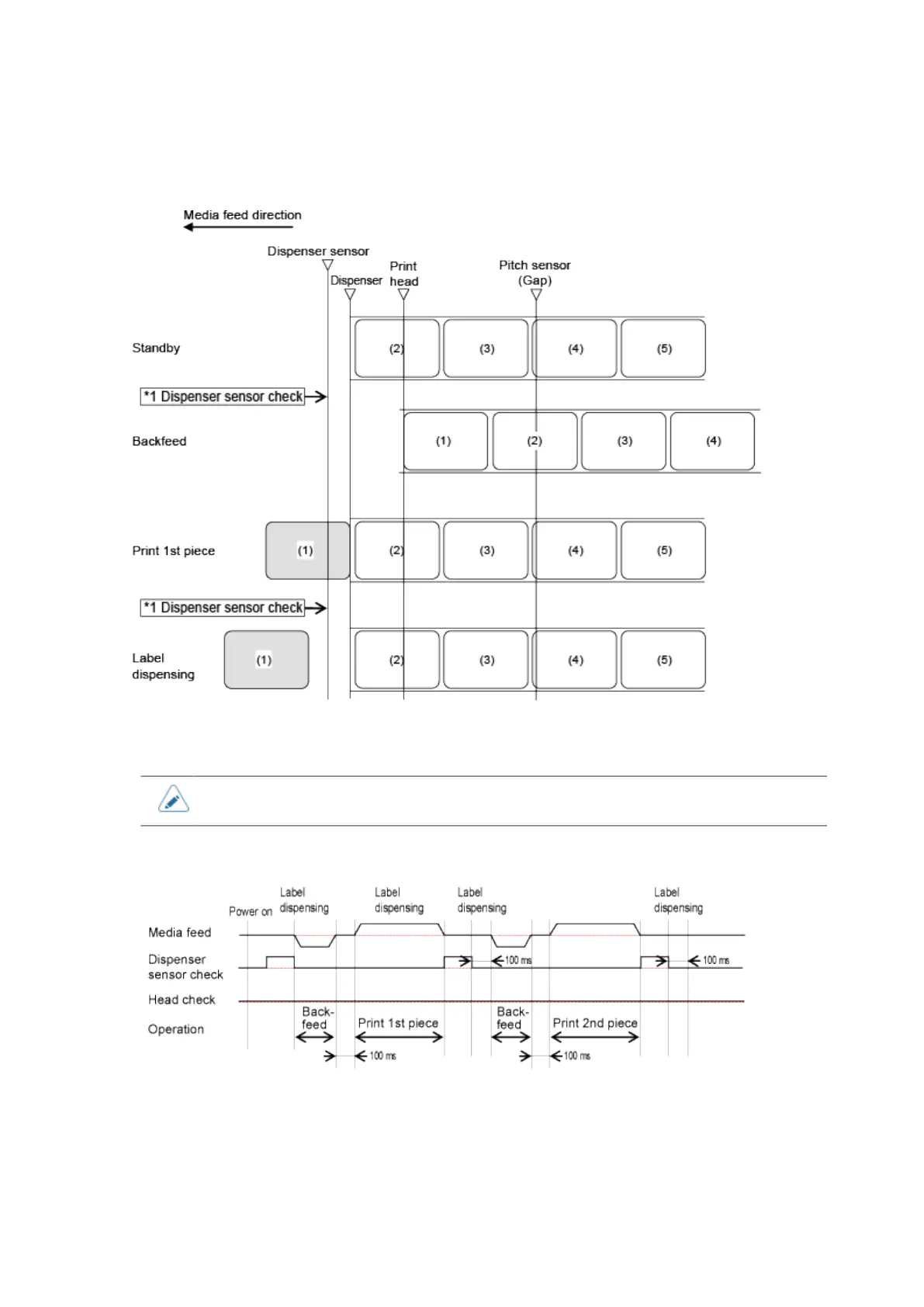

Dispenser Mode and Backfeed Before Printing (Head Check Disabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the product does not perform the next
operation until the label is dispensed.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
