339

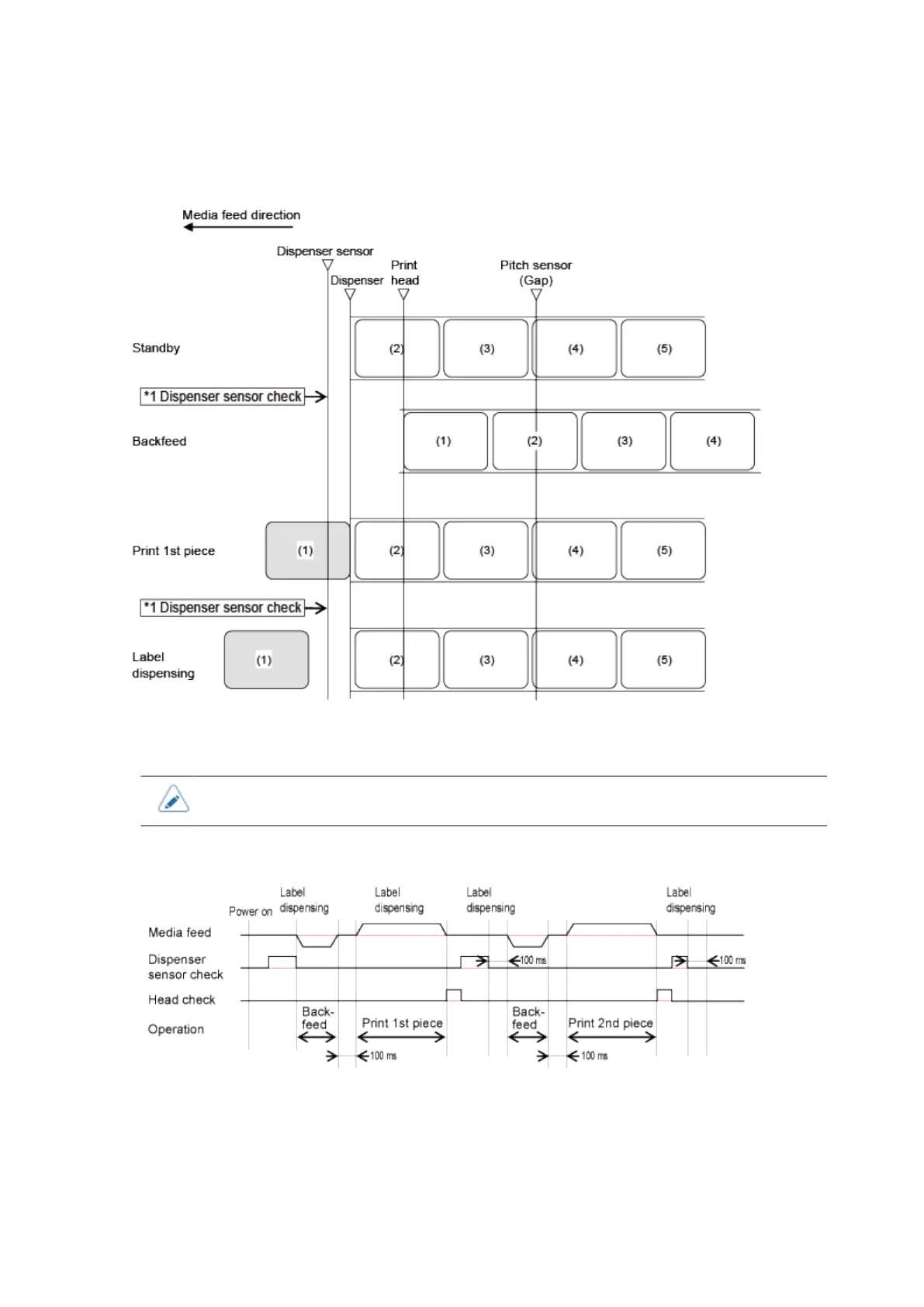

Dispenser Mode and Backfeed Before Printing (Head Check Enabled)

Operation

*1 The dispenser sensor confirms the dispensing condition and the product does not perform the next

operation until the label is dispensed.

• The figure above shows the reference position when the Gap sensor is used.

Timing Chart

Questions and Answers:

Need help?

Do you have a question about the SATO CT4-LX and is the answer not in the manual?

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
