1 Installation
1.2 Power supply and wiring
6
GC-2014
Q Fuse
The following fuses are used in the GC-2014.
Q Allowing the GC to dry after transport.
Under some transport conditions, condensation may form inside the GC components. To
avoid injection port or detector heater unit short-circuits, allow the unit sufficient time to dry
after transport, and follow the procedure below after installation.

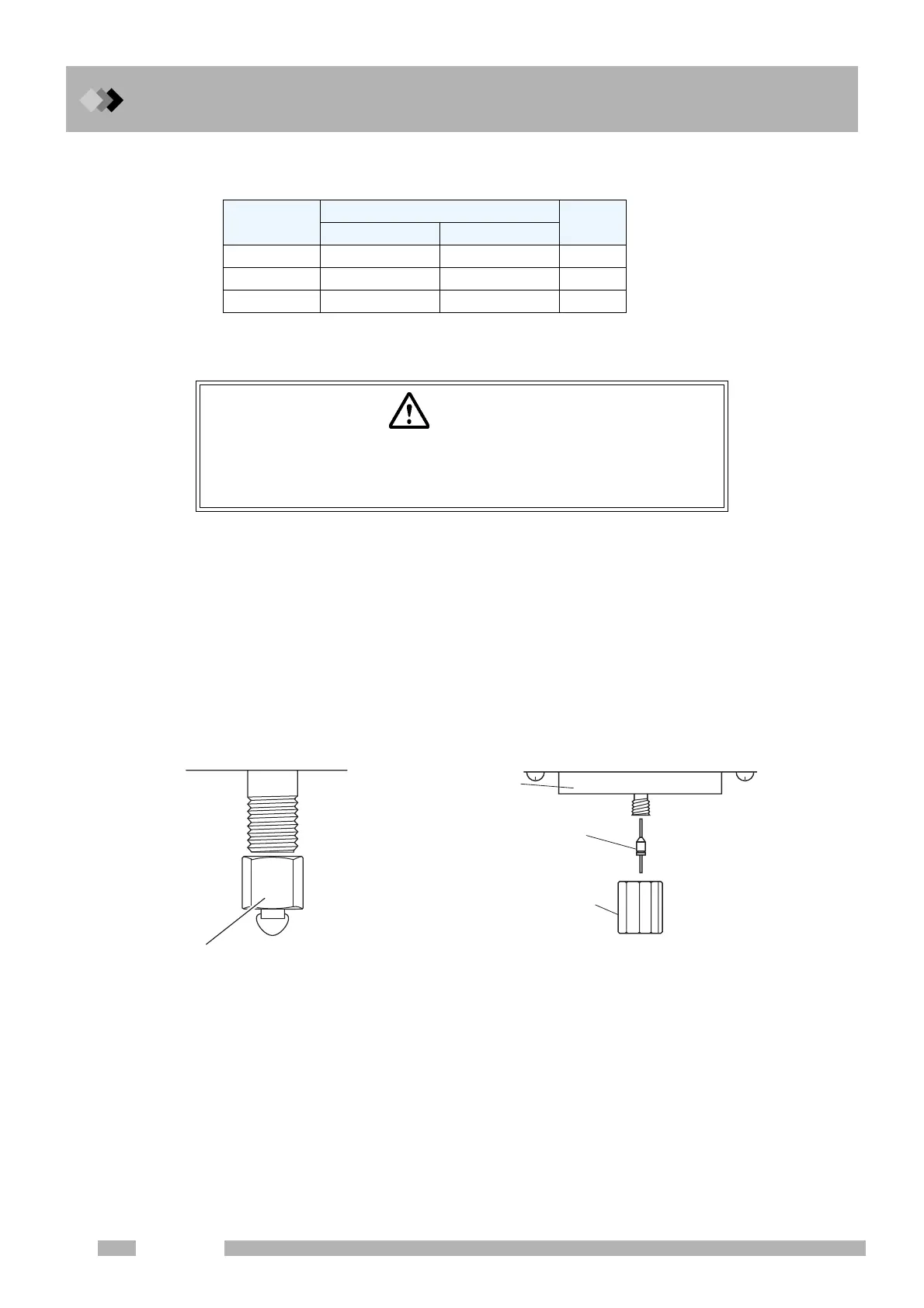

(1) Seal the injection port and detector without attaching a column. (Refer to the figure
below.)
(2) Remove the injection ports (INJ) and detectors (DET) from all configured analytical flow
lines to prevent the heater from turning ON.
(3) Set the column oven temperature to 300 °C and start the GC.
(4) Keep the column temperature at 300 °C for 2 hours or more.
Fuse, No.
Rated current/voltage
Type *
∗Classification depending
on “IEC127”.115 V model 230 V model
F1, F2 15 A/250 V 10 A/250 V T
F3, F4 5 A/250 V 3.15 A/250 V T
F5, F6 5 A/250 V 5 A/250 V T
CAUTION
GC-2010 may get wet from humidity in some transport conditions. In
such case “drying-out” is necessary to avoid a short circuit at the
heater in the injection port or the detector.
Thermal
insulation cup
Graphite ferrule
with a wire
Column nut
(or Column nut
of injection port)
When a capillary column connecting
joint is used
2NWI
When a packed column connecting
joint is used
To Next Page
