Shimadzu GC-2014 Instruction Manual

3 Installing Packed Columns and Setting Analytical Flow Lines
3.5 Packed Analysis Using the Single DET
44
GC-2014

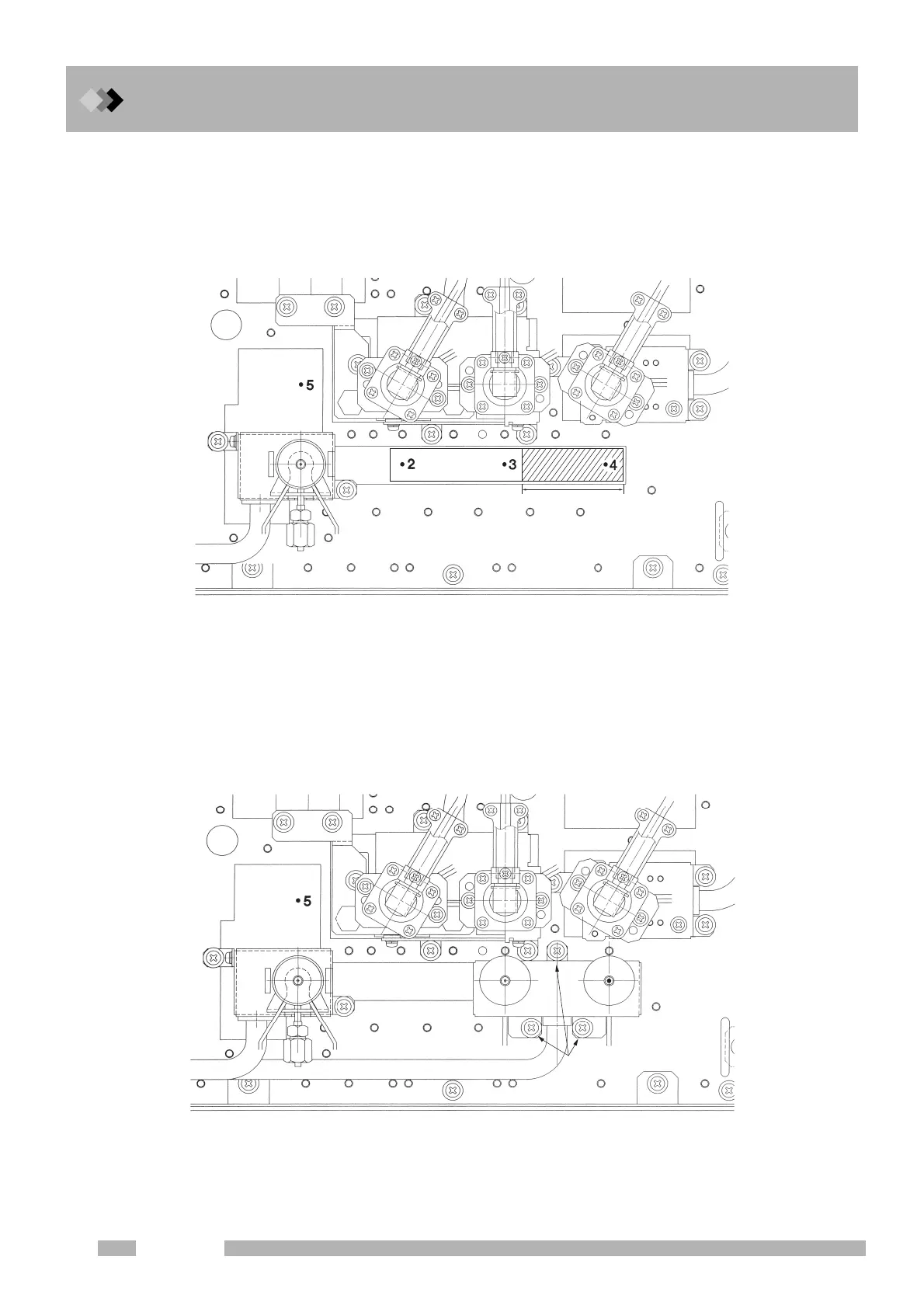

(7) Cut out the heat insulator using a cutting knife, etc. as shown in Fig. 3.5.2 (a).
(The heat insulator is approximately 3 cm thick. Cut the sheet metal on the bottom of the
heat insulator as well.)
(8) Move the cut heat insulator to the left.
(9) Insert the dual INJ on top of the heat insulator that has been taken out in step (6) and
fasten it with three screws. (Refer to Fig. 3.5.2 (c)).
(10) Connect the wiring that has been removed in step (4) to the dual INJ as it was originally.
Fig.3.5.2 (b)
Fig.3.5.2 (c)
50mm
Screws (sems screws + flat washers)

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
