3 Installing Packed Columns and Setting Analytical Flow Lines
3.5 Packed Analysis Using the Single DET
45
GC-2014
■ Setting analytical flow lines
Setting analytical flow lines is described below.
For procedures to install columns and input analytical conditions, refer to the operation
manual.

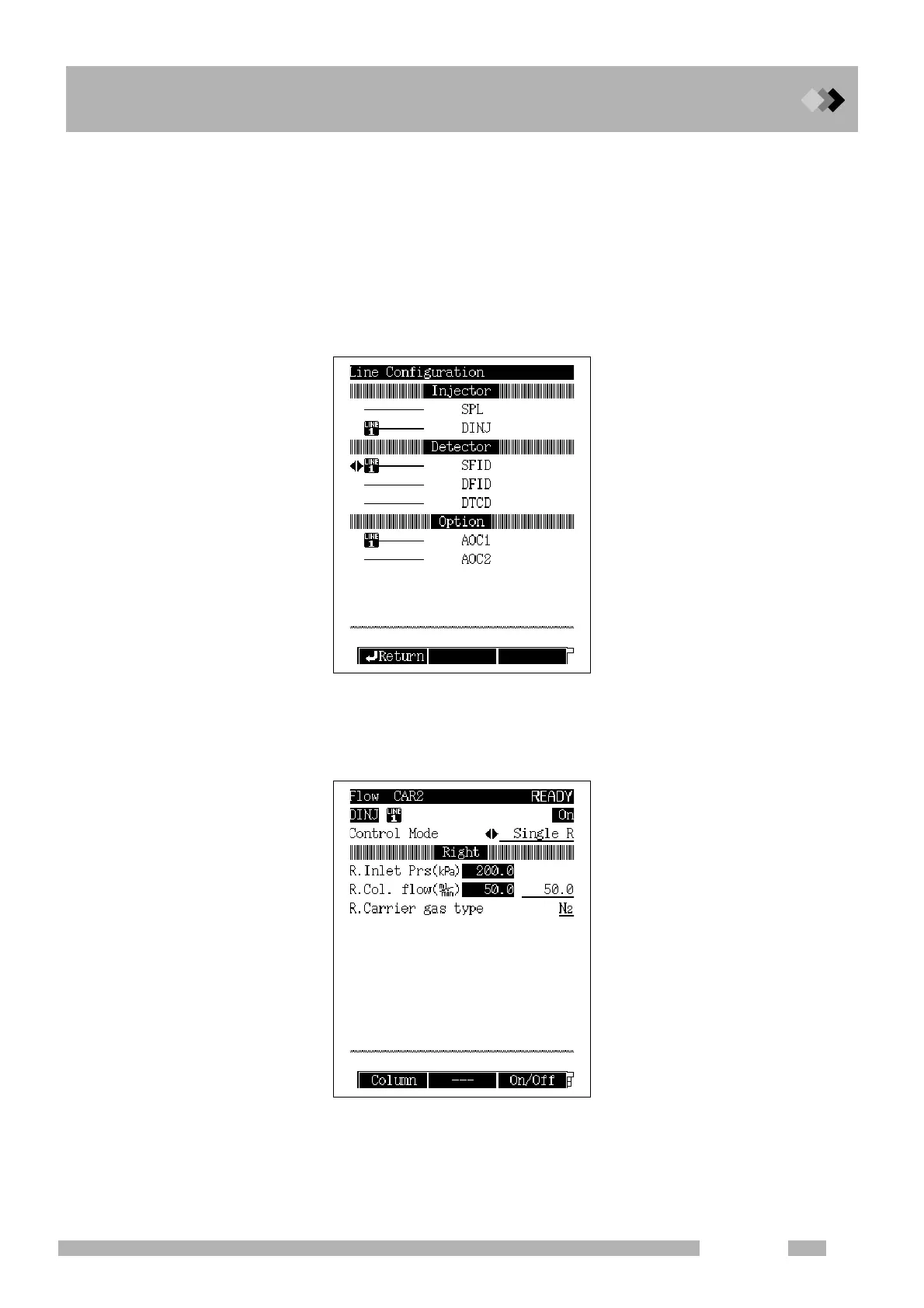

1. Set a line.
(1) Press the [SET] key and then press the [PF2] key (Line Config).
(2) Set the dual INJ (DINJ) and single DET (PECD in the screen below) on a same line.
LINE1 is specified in the example below. Lines 1 through 4 can be selected.
2. Set the dual AFC.
(1) Press the [FLOW] key.
(2) Set “Control mode” as described below.
Set to “Single L” when the column is connected to the left (L) side of the dual INJ and “Single
R” when it is connected to the right (R) side.
