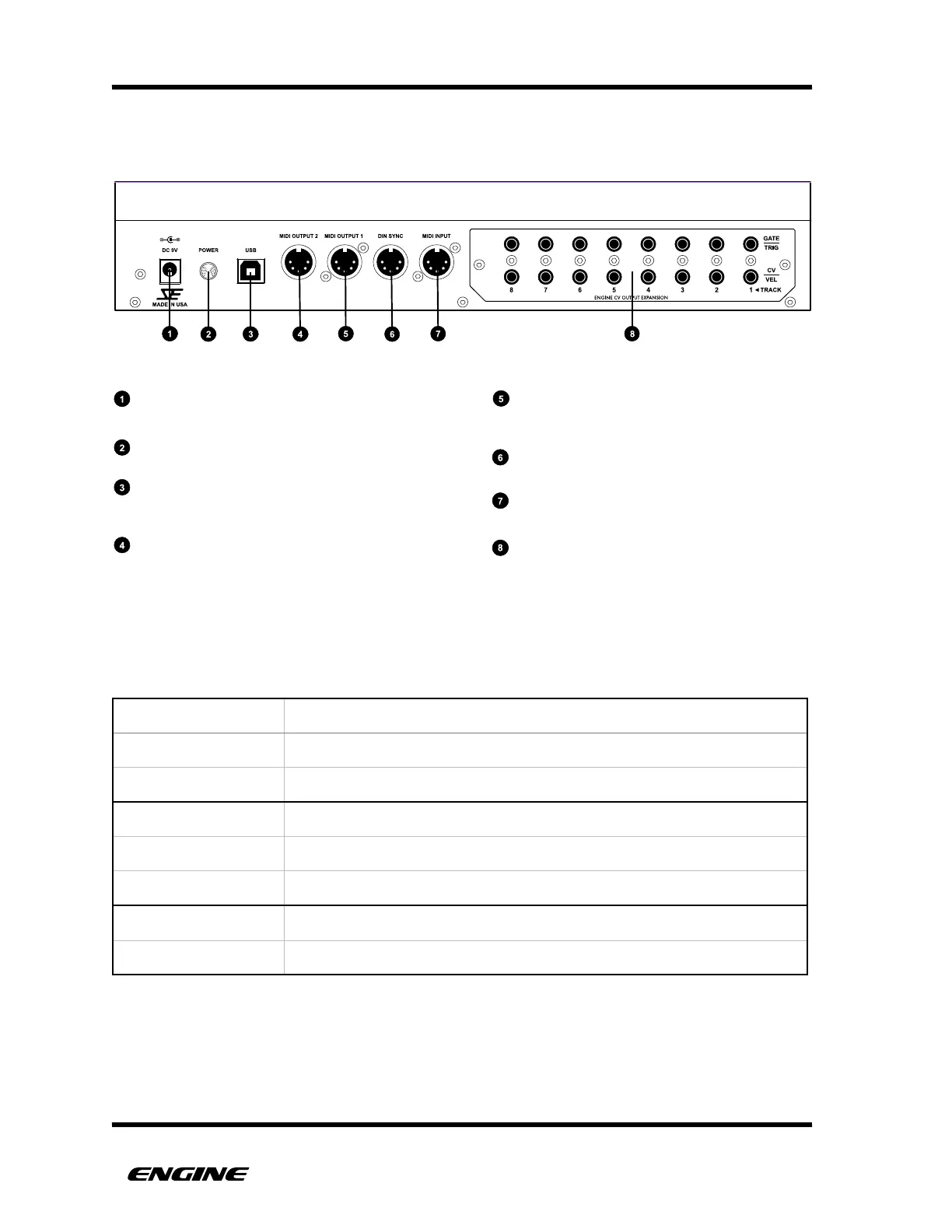

POWER JACK
Use 2.1mm, 9V DC power supply, center positive
500mA or more.
POWER BUTTON
Push to turn Engine on or off.
ISOLATED USB JACK
Use to connect Engine to a USB host, such as a computer.
USB can be used for updating the firmware
or sending MIDI over USB
MIDI OUTPUT 1 JACK
Connect to external MIDI devices for sequencing
or synchronization. Output 1 provides power to unpowered
MIDI devices
DIN SYNC JACK
Can be configured as either a DIN SYNC master or
slave for synchronization
MIDI INPUT JACK
Connect to external MIDI devices such as MIDI controllers
or a MIDI clock master for synchronization
EXPANSION PORT
Mounting bay for optional expansion boards,
such as the CV/Gate expansion
MIDI OUTPUT 2 JACK
Connect to external MIDI devices for sequencing
or synchronization. NOTE: Output 2 does not provide power
to unpowered MIDI devices
